DDR4 example design仿真

各位前辈好： 我按照官方的手册，生成了ddr4 IP的example design 后，去进行仿真 我首先设置更改了 change directory，然后 执行命令 vsim -do msim-setup.tcl ，返回一个 no design specified 的提示，再执行do msim_setu...
  • AdzimZM_Altera's avatar
    AdzimZM_Altera
    5 years ago

    Hi pp,

    You actually doing it right.

    After performing commands do msim_setup.tcl, you should perform the commands like below:

    1. dev_com
    2. com
    3. elab_debug
    4. add wave "ed_sim/*"
    5. transcript file transcript.txt
    6. run -all

    I already share the run.do file at my first comment there.

    It's contains the commands to simulate your design.

    In order to use it,

    1. Copy the run.do into your msim_setup.tcl directory
    2. Open Modelsim
    3. Change directory to your msim_setup.tcl directory
    4. Perform do run.do in the transaction windows

    Feel free to ask me when you still need some help.

    Thanks,

    Adzim

pp's avatar
pp
Icon for Occasional Contributor rankOccasional Contributor
5 years ago

Hi Adzim;

i will use english to repeat my question，i want to simulate the official DDR4 IP CORE，but i meet some problems。I will explain my steps to simulate DDR4 IP step by step. Please help me to see if there is any problem with my steps。

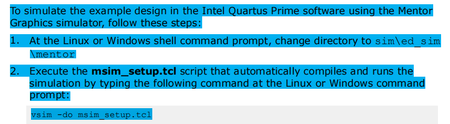

first: i open the modelsim and change directory，please look at the picture

second ：I enter the following command in the modelsim command bar

third: I enter the following command in the modelsim command bar

And then there was no reaction，what should i do?
