Programming .jic to S25FL128S FLASH with Cyclone 10 LP device

At first, there was no problem when I downloaded my .jic file to S25FL128S. However, after operating the Flash through "Generic Serial Flash Interface Intel FPGA IP Core" (including writing and read...
a_x_h_75's avatar
a_x_h_75
Icon for Contributor rankContributor
7 years ago

I very much doubt there are any 'special characteristics' of that device. I'm pretty confident I'll have used exactly that part before without issue.

Can you read/write to any part of the device from your FPGA? Is it damaged? You suggest it has previously worked as expected...

Cheers,

Alex

BSui's avatar
BSui
Icon for New Contributor rankNew Contributor
7 years ago

Hi Alex，

Thanks for you reply.

I checked the issue with another FPGA board.

1. At first, the jic file can be programmed into the S25FL128S.

2. Then, I execute sector protect operation on S25FL128S with "Generic Serial Flash Interface Intel FPGA IP Core".

3. Then, I failed to program the jic file into S25FL128S, which is expected due to the sector protect operation in step 2.

4. I unprotect the S25FL128S with "Generic Serial Flash Interface Intel FPGA IP Core".

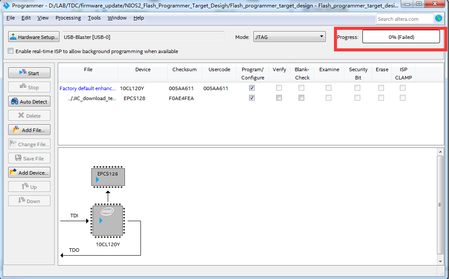

5. Still, no way to download the jic into S25FL128S.

I doubt if some register bits of S25FL128S is locked to prevent the programming operation after step3. Do you have any clue?

Thx so much!

Leo
