From PIO IP to HPS SDRAM (Cyclone V SE)

Question

Hello world,

I'm trying to right into the HPS RAM the button position of my atlas-soc / de0-nano-soc.

Using Qsys (which I'm slowly discovering), I tried to map the buttons to the RAM bus, the issue is in the address bank of the memory bus.

I run Linux in the HPS with the "mem=800M" parameter, so I want to write the buttons position after the 800M firsts bytes.

Any idea ?

altera_forum · Answer

Hi back,

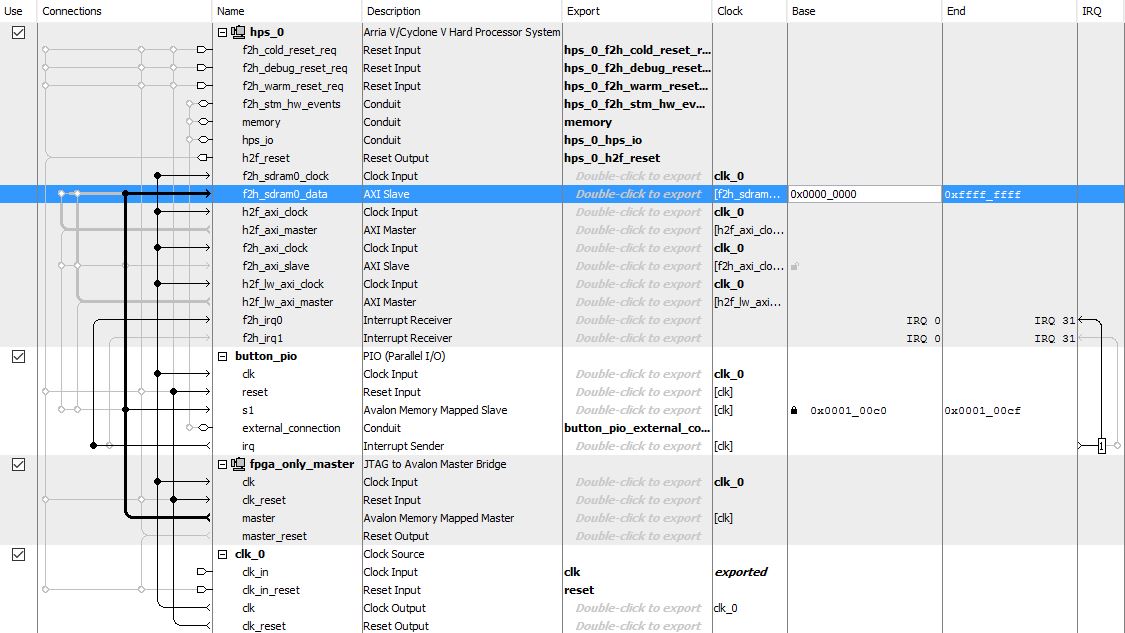

I've tried to continue, my design is now the one attached but it is still not complete.

my goal:Get the button position of the De0-Nano-SoC and put the data into HPS RAM, in the last 200MB.

my questions:How to define the address in RAM where to write the buttons position?

Where to connect control_port_slave of my dma controller IP?

Thanks !

Léo :france:
