Supporting Protocol specific presets in Stratix 10 L-tile Transceivers

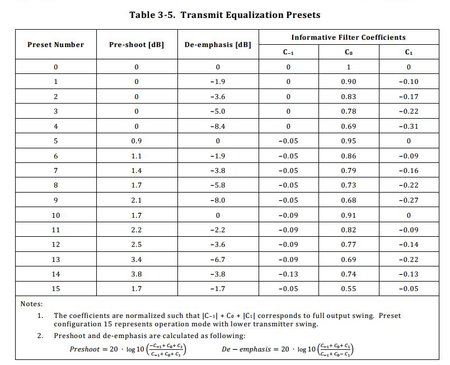

Hi, We are trying to interface some high speed protocol devices with Stratix 10 SoC dev kit @20gbps. The protocol expects the Transmit presets as shown below.  Also, I downloaded the pre-em...
CheepinC_altera's avatar
CheepinC_altera
Icon for Regular Contributor rankRegular Contributor
5 years ago

Hi,


Sorry for the inconvenience. I might have overlooked your latest response.


Thanks for your clarification that you are targeting USB4. As I understand it from the S10 L/H-Tile user guide, seems like there is no specific information about USB4 protocol. In other words, there is no formal support or characterization done for USB4 protocol. This could explain why there is no ready preset on this in the Native PHY.


As a workaround, you would need to perform your own evaluation on the right set of PMA analog settings to work with your target protocol as suggested in my previous note. Sorry for the inconvenience.


Please let me know if there is any concern. Thank you.



Best regards,

Chee Pin
