Set up for LVDS SERDES IP for Cyclone 10 GX, need 96 TX with 16 CLKs.

I am using the platform designer to set up LVDS SERDES on the Cyclone 10 GX. I have 118 available LVDS channels but the IP is only allowing me to use 72 channels. I need 96 TX outputs with 16 CLKs (1 CLK per 6 TX). Is there a way to set this up or is there some sort of restriction?

3 Replies

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi Kyle,

    Is there any error message for this? Also, what is the OPN that you are using?

    Thank You.

  • KRoma6's avatar
    KRoma6
    Icon for New Contributor rankNew Contributor
    5 years ago

    Hi,

    Would I be able to create another instance of this IP to reach my desired length?

    The OPN is: 10CX220YF780E5G

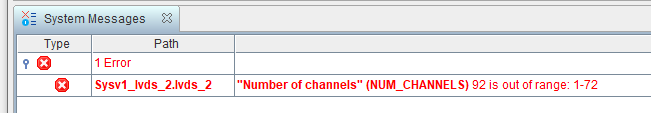

    Here is the Error Message that pops up in IP Parameter editor or Platform Designer:

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi Kyle,

    This message indicates that yo have already used up all the channel in a IP already. Can you try create another LVDS IP instance?

    Thank You
