How to configure DisplayPort TX to support BT.2020 colorimetry

Hi everyone, we are not able to configure DisplayPort TX to use BT.2020 colorimetry. Let's say we want to transmit YCbCr 4:2:2, 10 bit, limited range, BT.2020. According to the Displa...
  • Deshi_Intel's avatar
    Deshi_Intel
    5 years ago

    HI,

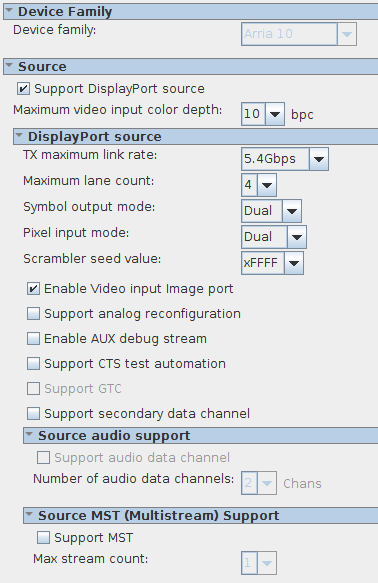

    You are right in the sense that BT.2020 should be enabled via VSC SDP but I don't see you enable "secondary data channel" in your Intel DP Tx IP.

    • This could be the problem as you are transferring secondary data packet (SDP) here


    Below is what I found out from DP rev1.4 spec

    1. Pre-requisite
    • Ensure DP sink EDID support 3D Stereo in-band signaling
      • Ensure DP sink enable “VSC_SDP_EXTENSION_FOR_COLORIMETRY_SUPPORTED”, DPCD address 0x2210h (bit 3 = 1)
      • Enable Intel DP Tx “secondary data channel”
    • Then to enable/configure BT.2020 support
      • DP Tx set MSA (MISC1, bit6 =1) to use VSC SDP
      • Configured YCbCr 422 BT.2020 setting via VSC SDP, payload data byte (DB16)


    Thanks.


    Regards,

    dlim
