How could I generate Example design of S10 PCIe GEN 2X4 with DMA option.

Hi,

Dis anybody create a example design from IP catalog which have DMA option enable? I only could see PIO option.

and in 'Intel® Stratix® 10 Avalon-ST

Interface for PCIe Solutions User

Guide', it mentions a Chaining DMA example , how could I get this example in S10 Device ?

Thanks.

3 Replies

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi Sir, Will it work if you just set the PCIe IP GUI with Gen2x4 and turn on DMA option. Then generate the example design on the top right corner?

  • LChen23's avatar
    LChen23
    Icon for New Contributor rankNew Contributor
    6 years ago

    yes, it seems no DMA option at example design tap, only PIO in quartus 19.3pro.

  • BoonT_Intel's avatar
    BoonT_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

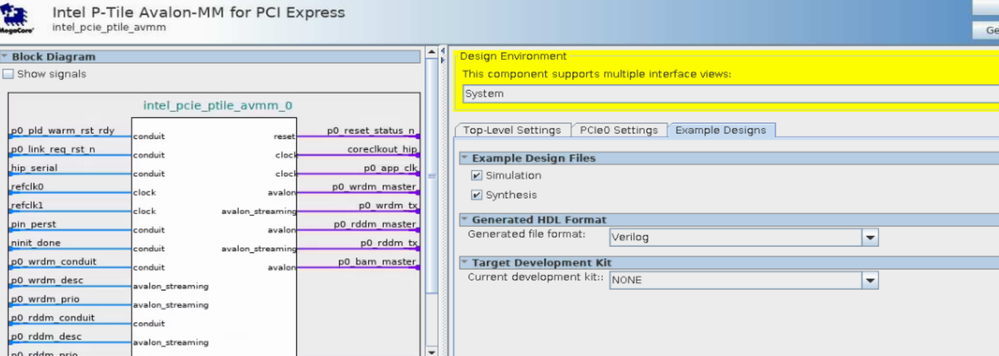

    I also do not see any PIO under example design tab. Usually the example desingn is based on the available setting on the IP. Since there is no DMA design at this moment, so no PCIe with avmm-dma example design yet.
