I am trying to understand the GTS Clocking Network.

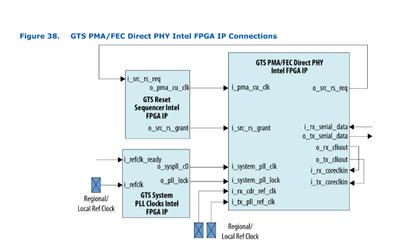

In the user guide doc here, it is possible to see the following suggested design:
However later in the doc, we can see this statement:
Which is a confusing suggestion, as it suggests an the input clock to the SysPLL should control the i_rx_cdr and i_tx_pll.
Is there somewhere else that explicitly explains how to connect these three regional/local-ref clocks? Are they all connected to the same reference clock?
Many Thanks!
Hi,
Apologies for the delayed response.
As I understand it, you have some questions regarding the connections for i_rx_cdr and i_tx_pll of the PHY, as well as i_refclk for the system PLL. For your reference, in the example design, all three reference clocks are configured to operate at the same frequency. Therefore, it is recommended to connect them to the same clock source.
