built msim_setup.tcl in ip-make-simscrpt. Need procedure to get PLLs in "work" directory. Getting "failed to run ip-make-simscript" invoking modelsim from quartus.

3 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    7 years ago

    Hi,

    Can you please launch modelsim directly and try(instead of invoking from quartus ).

    I have to run -> ip-make-simscript --spd=<directory>/ pll1.spd --output-directory=<directory> --compile-to-work --use-relative-paths from command prompt to generate msim_setup.tcl

    and follow the steps given in msim_setup.tcl for simulation.

    1. set QSYS_SIMDIR <directory>/pllsim
    2. source $QSYS_SIMDIR/mentor/msim_setup.tcl

    Which loads the design without any error.

    Reference

    https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_megafunction_overview.pdf

    https://www.intel.com/content/www/us/en/programmable/documentation/aym1499789502823.html

    Regards

    Anand

  • LCard2's avatar
    LCard2
    Icon for New Contributor rankNew Contributor
    7 years ago
    Hi, Msim_setup.tcl run, followed instructions. Is …<directory> necessarily directory with top level entity? Do the ip generated files I have (IPpll.v, IPpll_inst.v, and IPpll_0002.v) have to be in project folder or just IPpll.qip? Without invoking ModelSim from Quartus, how doe a woek directory get populated? Len
    • AnandRaj_S_Intel's avatar
      AnandRaj_S_Intel
      Icon for Regular Contributor rankRegular Contributor
      7 years ago

      Hi,

      Is …<directory> necessarily directory with top level entity

      Yes,Refer transcript.

      Do the ip generated files I have (IPpll.v, IPpll_inst.v, and IPpll_0002.v) have to be in project folder

      yes, i have all IPpll.v, IPpll_0002.v & IPpll.qip.

      How doe a woek directory get populated?

      Script will take care.

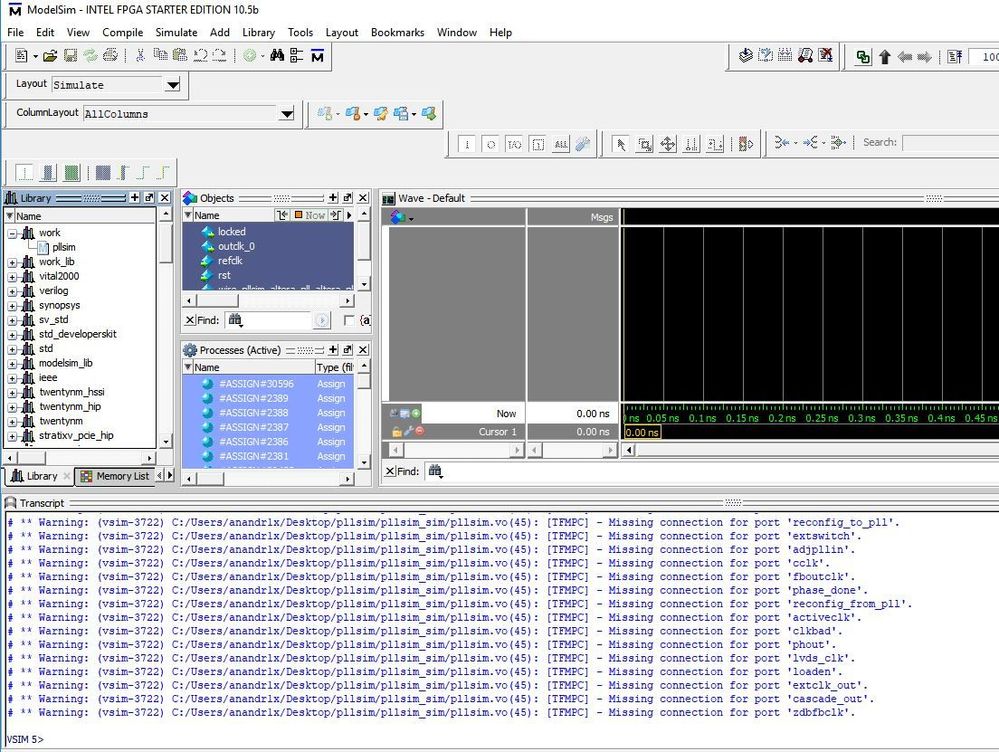

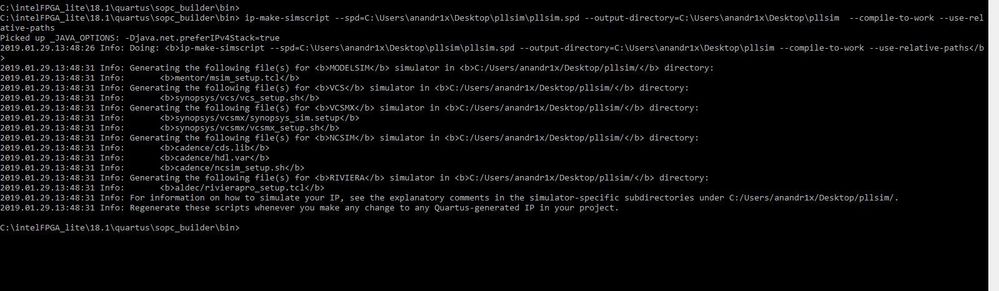

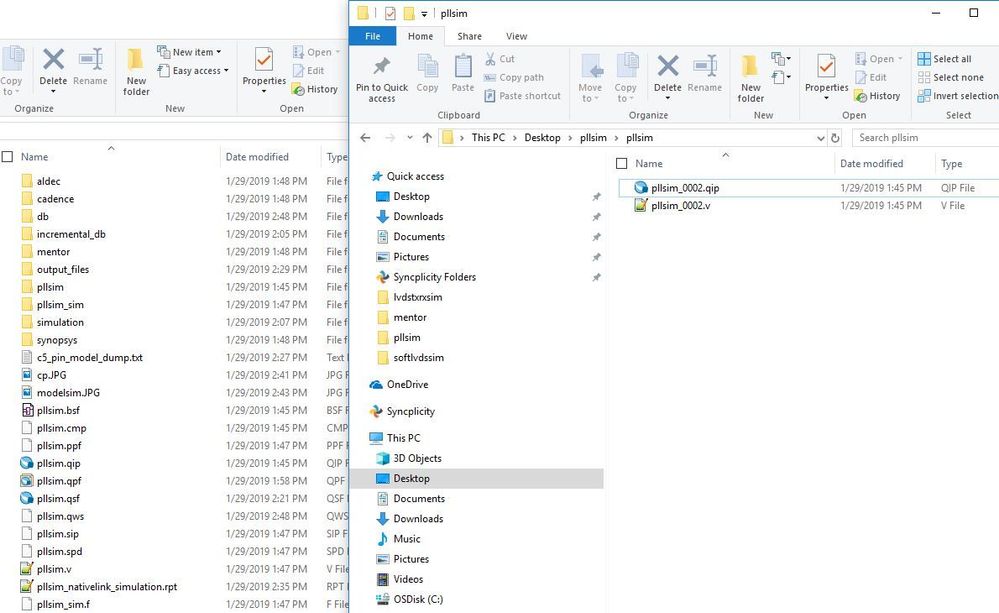

      Attached the transcript & images.

      Regards

      Anand
