altpcietb_tlbfm_rp location PCIe simulation

Hi Sir

I looked into the Arria 10 PCIe AvMM User Guide, doesn't found the mention of 'altpcietb_tlbfm_rp'

May I know your generated example design is targeting which FPGA devices? Cyclone 10, Arria 10, Stratix 10 or Agilex?

Intel Arria 10 and Intel Cyclone 10 GX Avalon Memory Mapped (Avalon-MM) Interface for PCI Express User Guide

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/ug/ug_a10_pcie_avmm.pdf

In Chapter 13 of above user guide, there is a driver module called 'altpcietb_bfm_rp_gen3_x8.sv'

Chapter 13 provided the testbench instantiates an endpoint design example and a Root Port BFM.

Probably this is what you are looking for.

Chapter 14 provided the simulation testbench that instantiates a Root Port design example of the Avalon-MM

Arria 10 Hard IP for PCIe and an Endpoint BFM.

You can follow the steps in these chapters to run the simulation.

Hi there,

I am generating an example for Cyclone V GT devices; so this is a gen2x4 interface. (I would love to be using a more modern device - but don't have the funds!)

The reference to this module may be found in the file:

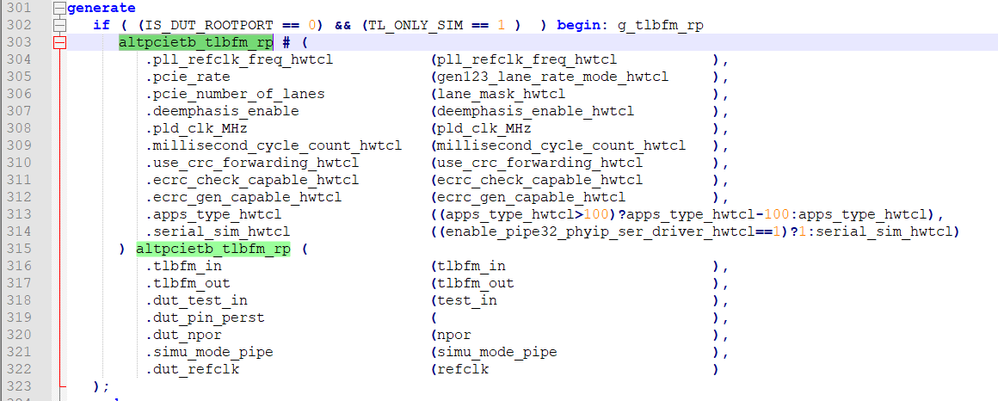

<root>\pcie_de_gen2_x4_ast64\testbench\pcie_de_gen2_x4_ast64_tb\simulation\submodules\altpcie_tbed_sv_hwtvl.v

on line 303

Specifically, this module is instantiated when the design is not a root port.

Thanks

Alex
