Altera avst pcie enumeration using synopsys pci vip

Hi community team,

I want to use the pci_vip from synopsys for my simulation tb setup along with Avalon-st as an endpoint .

My queries is weather we can use both the serial and pipe interface of vip to do the enumeration of av-st ?

If both the interface are supported by avst, then where should we define the interface in avst pcie core.

Please Note: I don't want to use the simulation tb generated by qsys. I want to use the 3rd party pci_vip from synopsys.

Regards,

Piyush

7 Replies

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    Can I know which Intel FPGA device you are using ?


    Regards,

    Wincent_Intel


    • pdewanga's avatar
      pdewanga
      Icon for New Contributor rankNew Contributor
      3 years ago

      Hi,

      I am using the Stratix10M Fpga

      [1SG10MHN3F74C2LG ]

      Regards,

      Piyush

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    To be honest, I am not familiar with Synopsys tools as I am focusing on Intel PCIe IP.

    If your question is about Stratix 10 AVST can support Serial Pipe or not, then you can refer on the user guide.

    https://www.intel.com/content/www/us/en/docs/programmable/683111/21-1/introduction.html


    The pipe interface is available under simulation only where you can refer under Section 3.15

    While the information about Serial and PIPE you can refer under Section 5.2.1


    Hope this answer your question, let me know if any further clarification is needed.

    Regards,

    Wei Chuan


    • pdewanga's avatar
      pdewanga
      Icon for New Contributor rankNew Contributor
      3 years ago

      Hi Wei Chuan,

      My question is little generic only - can we use the serial and pipe interface both in simulation for enumeration ? leave the synopsys vip.

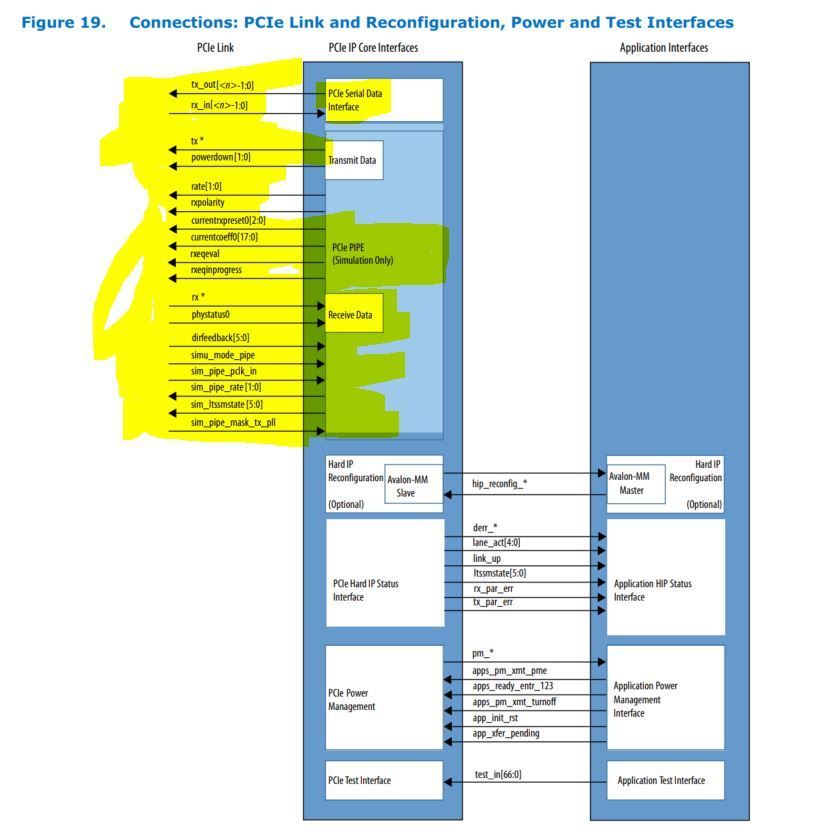

      Attaching the figure showing pipe and serial interface.  

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    As mention in the user guide, it support simulation only.

    Hope this clarified, let me know if futher clarification is needed.


    Regards,

    Wincent_Intel


  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,

    I wish to follow up with you about this case.

    Do you have any further questions on this matter ?

    ​​​​​​​Else I would like to have your permission to close this forum ticket

    Regards,

    Wincent_Intel


  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,

    We do not receive any response from you to the previous answer that I provided.

    Hence, This thread will be transitioned to community support.

    If you have a new question, feel free to open a new thread to get support from Intel experts.

    Otherwise, the community users will continue to help you on this thread. Thank you
