wrong pin assignments in official 10CX220YU484 cadence cis symbol

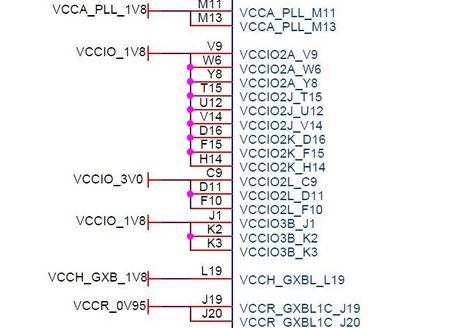

The pin assignments J1, K2 ,K3 are different from the pin assignment in quartus software. Actually, in fpga 10CX220YU484, the bank 3B has not been fan out from the core. So these power supply...
SyafieqS's avatar
SyafieqS
Icon for Super Contributor rankSuper Contributor
4 years ago

Zeng,


Thanks for your feedback, I had feedback this to the developer for improvement.

Let me know if there is any other concern.
