Request Data Sheet (Soldering Temperature) Customer Teradyne

Question

Hi Technical Team
Seeking your help to check what is the peak temperature(soldering) and max time at peak temperature for part number(orange highlighted) below. Kindly provide datasheet(with peak temperature and max time at peak temperature) as well.

No

Part Number from original BOMS

Description

Manufacturers.Mfr. Name

Manufacturers.Mfr. Part Number

1

504371-198

TY IC  PLD  ALTERA EP1S20F780C

INTEL

EP1S20F780C6

2

508150-198

TY IC EP1C3T100C7 CYCLONE TQFP100

INTEL

EP1C3T100C7

3

508151-198

TR IC EPCS1SI8N 1MBIT FPGA CFG SO8

INTEL

EPCS1SI8N

508151-198

TR IC EPCS1SI8N 1MBIT FPGA CFG SO8

INTEL

EPCS1SI8

508151-198

TR IC EPCS1SI8N 1MBIT FPGA CFG SO8

INTEL

EPCQ4ASI8N

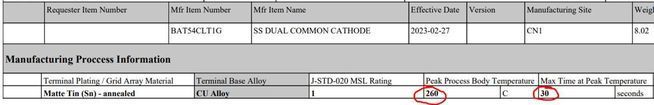

Sample of datasheet that induce peak temperature(soldering) and max time at peak temperature:

wz2 · Answer

Hi there,All these device is discontinued, however there are some links you can refer:For Stratix , u can use this link as reference:https://www.intel.com/content/www/us/en/content-details/733587/manufacturing-with-intel-stratix-10-field-programmable-gate-arrays.html?DocID=733587For other device, https://www.intel.com/content/www/us/en/content-details/653917/an-353-smt-board-assembly-process-recommendations.html?wapkw=an353&amp;DocID=653917Best regards,WZ

wz2 · Answer

Hi there,Is this okay~

Forum Discussion

Request Data Sheet (Soldering Temperature) Customer Teradyne

2 Replies
