Occasional Contributorpin 6 of usb blaster ii cable

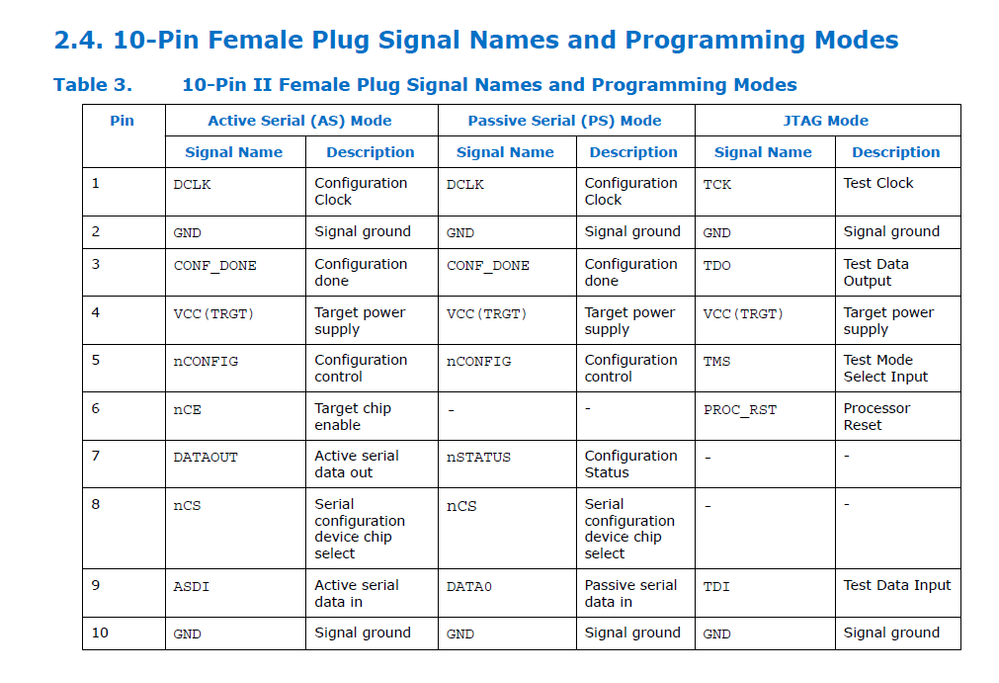

where should pin 6 of usb blaster ii cable to connect for FPGA max 10 and Cyclone IV?
Using JTAG mode, pin 6 proc_rst
Should it be some pin user defined for system reset?
Any dedicate pin of FPGA?
5 Replies
YuanLi_S_IntelRegular Contributor
You may use pin 6 for hard processor reset under JTAG mode. Otherwise, you may leave it unconnected.
XQSHENwhat do you mean hard processor reset?
Should it be a pin user defined for system reset in verilog code?
Any dedicate pin of FPGA?
- YuanLi_S_Intel
Yes, it is a pin used to trigger warm reset of the HPS block when prompted via the ARM DS-5 debugger in JTAG mode, It depends whether if you are using that or not. Else you may leave it unconnected.
As per the note in USB Blaster II user guide, you are recommended to connect this pin to a secondary device such as the MAX V CPLD, and use the device to manage the reset network for HPS.
- XQSHEN
Which pin?
Device is 10m16DCU324I7G
- YuanLi_S_Intel
It can be any pin in the MAX 10 since it is programmable. As long as the logic will trigger warm reset to HPS.
