MAX10 About absolute maximum rating

What is the Absolute Maximum Rating voltage for analog input pins on the MAX10 Dual Supply Devices? If Prescalar disabled and a voltage higher than the voltage value of the VREF pin is applied to th...
  • AminT_Intel's avatar
    AminT_Intel
    5 years ago

    Yes

ken-salt's avatar
ken-salt
Icon for New Contributor rankNew Contributor
5 years ago

Hi!

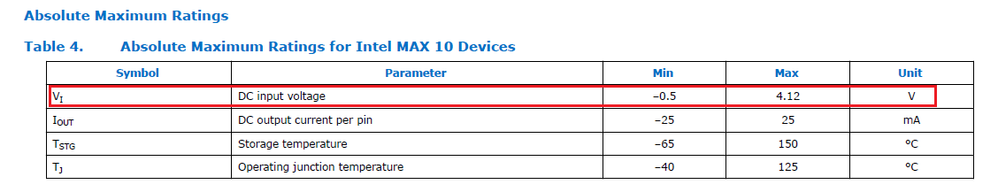

Is the absolute maximum input voltage of the analog input pin the same as the general purpose I / O pin on page 5 of the link document?

4.12V ?

Best regards.

AminT_Intel's avatar
AminT_Intel
Icon for Regular Contributor rankRegular Contributor
5 years ago

Yes

  • ken-salt's avatar
    ken-salt
    Icon for New Contributor rankNew Contributor
    5 years ago

    Thank you
