MAX10 - CRC_ERROR pin port type

Hello,

what port type is CRC_ERROR pin while signalling a detected error of configuration RAM?

MAX 10 FPGA Device Family Pin Connection Guidelines says "Output (open-drain)" but I could measure push-pull charactersitcs during present CRC error event.

What is right, push-pull or open-drain?

Best regards

Frank

Configuration
  • FvM's avatar
    FvM
    2 years ago

    Hi,

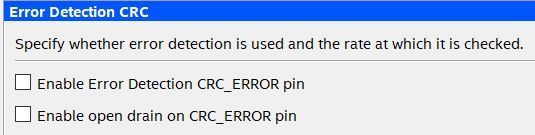

    basically both. Open drain is configurable option in crc_error pin settings.

3 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,
    basically both. Open drain is configurable option in crc_error pin settings.

  • FrankK's avatar
    FrankK
    Icon for New Contributor rankNew Contributor
    2 years ago

    Thanks a lot for your fast response and the hint, where to find the configuration options.
    I simply missed it.

  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,


    We are glad that your issue has been addressed very well by our community.


    I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
