6 years agoHi agaripcan6223 !

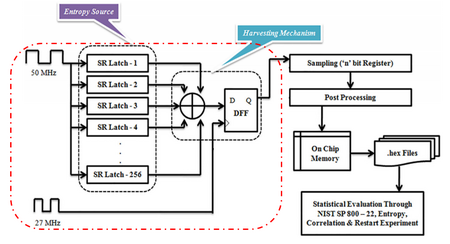

In order to create such a design you need to exploit hand placing the LUTs.
Have you tried using Assignments - Location -> LAB combinational cell?
Other issue is to create LUT mask to behave as NAND gate - you need to create hand placed LUTs and change their LUT mask using Resource property editor.
I also need to say that your design is highly unrecommended in FPGAs, here you create clock gating and combinational loops.
--
Best regards,
Ivan
