How to read write registers in qsys through NIOS?

You can only read it if it's readable, meaning your custom design has a readdata signal (read enable is optional if you've designed it as an always read except when writing design). You'd use an IORD command in a similar fashion to what you have there for IOWR. This training talks about it: https://cdrdv2.intel.com/v1/dl/getContent/653092

Hi,

Greetings and welcome to Intel's forum.

I have here a tutorial which might help you understand further about the NIOS II avalon interface.

https://www.uio.no/studier/emner/matnat/fys/FYS4220/h20/lecture-slides/embedded_niosii_avalon_bus.pdf

Hope this clarify your doubts.

Thank you.

Regards,

Kelly

Hello Kelly,

I am basically looking for help on functions/ways to access it from NIOS in C code. I have added registers in Qsys ( VHDL part). Now I want to access these registers from NIOS. So I am looking on functions/how to access it from NIOS?.

For example, lets say if I connect few led in VHDL, then the following NIOS code will help me to write these LED.

IOWR_ALTERA_AVALON_PIO_DATA(LED_BASE,cnt&0x0f);

So I am looking for similar function as shown above to read/write the custom registers that I created in qsys.

Thanks

Thanks for your response sstrell and Kelly. I tried the steps and have reached a certain point, but with no success yet.

I tried adding a custom block in qsys (it's a test register with avalon interface which enables read and write to the register). My intention is to read/write this register from NIOS. But, I am facing issue with that.

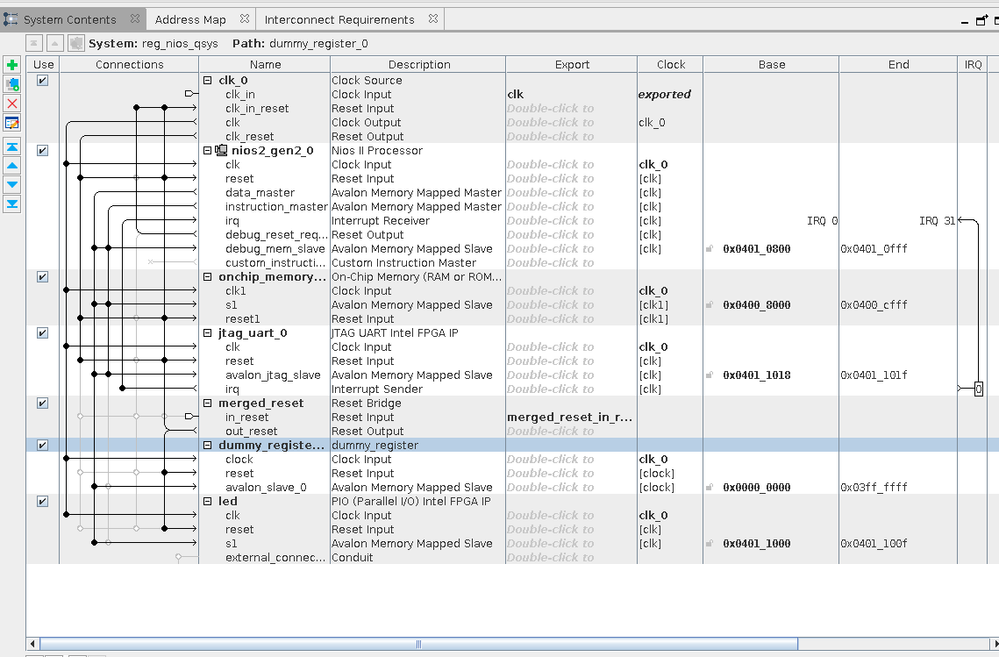

My qsys information below:

"dummy_register" is the component that I added as a custom logic, and would like to access from NIOS.

In my "dummy_register", I have set all the default values of the register to be hex"5555_5555". I created a NIOS project, and tried to read the register as follows, but getting a wrong value.

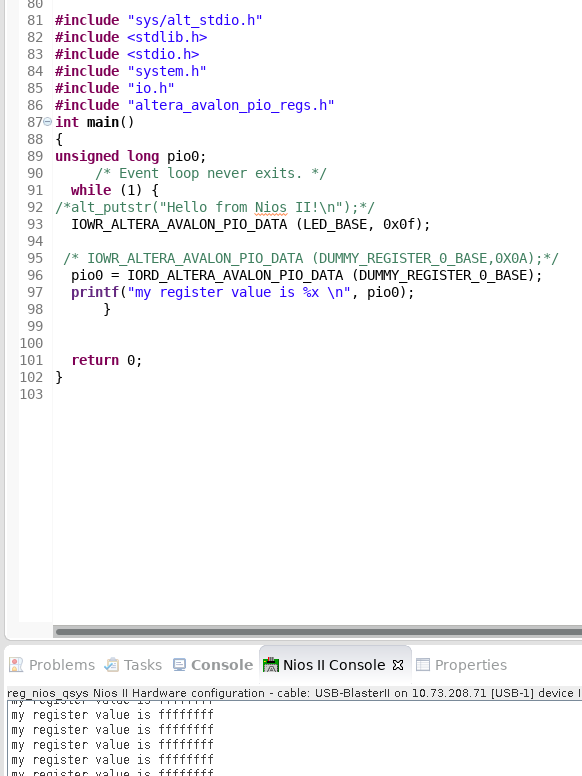

My C code and output in console hereby:

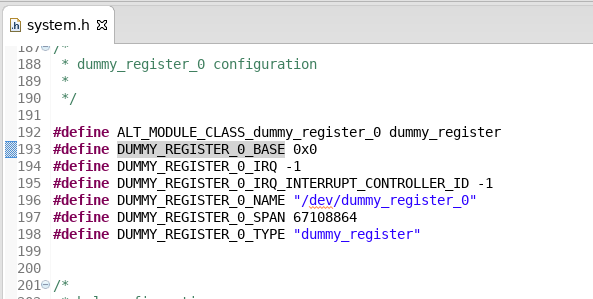

system.h file showing the dummy_register info:

Can you kindly point me out if I am missing something or doing anything wrong? Let me know if you need more info.

Thanks,

MK

You don't specify the design of dummy_register, but perhaps you need to connect the instruction master to it.

Hi Sstrell,

I am hereby attaching my dummy_register code. I am just hardcoding register values to couple of registers, and try to read from NIOS.

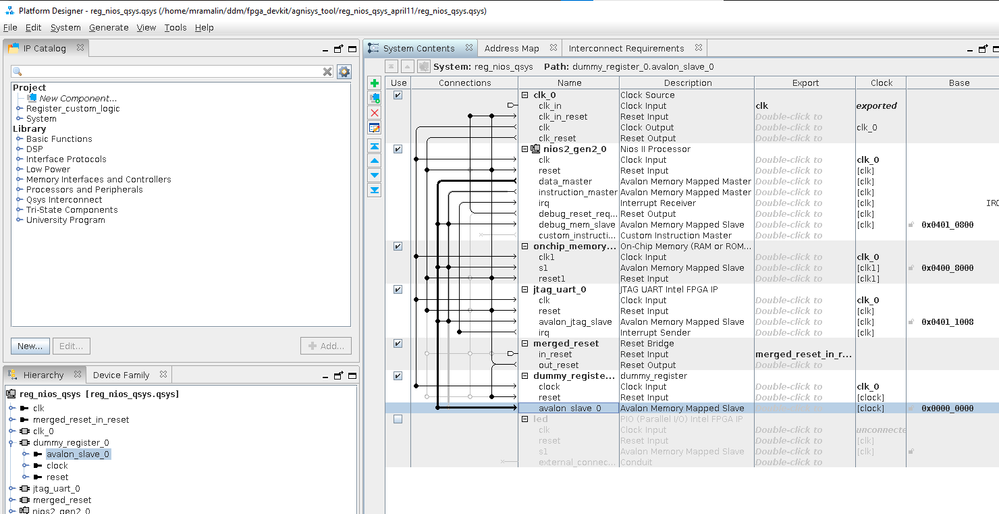

My Qsys is hereby.

Do you mean to say I should also connect the avalon slave port from dummy register to the CPU instruction master in the image above?.

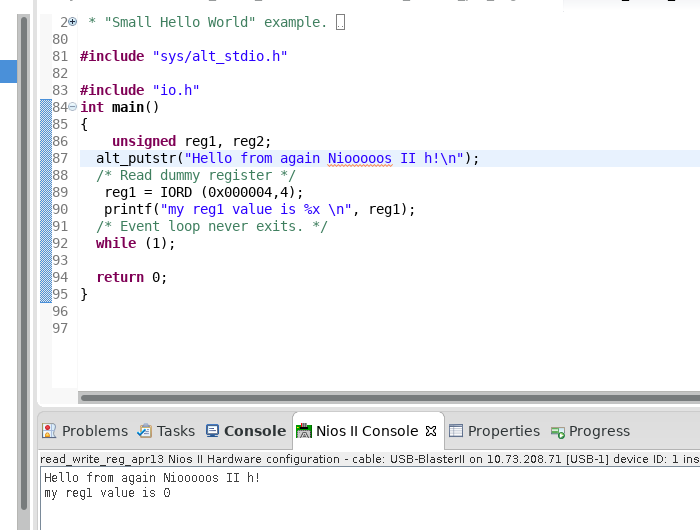

I updated the C code to more simpler one as shown here. I am not sure why I am getting "zero" as the read back value.

Hi,

Thank you for your response. I will get back to you shortly if I have any findings.

Thank you.

Regards,

Kelly

Hi,

It got resolved. I mistakenly was trying to read the wrong offset which did not exist in my VHDL.

Thanks for your responses.
