Error occurred during HDMI IP core data transmission

Hello,

I'm working with HDMI IP core with Agilex 7 DevKit through this manual: 1. HDMI Intel® FPGA IP Design Example Quick Start Guide for Intel...

I'm working with Quartus 23.4 and connect the Devkit board with Bitec FMC+ to Quantumdata M21 generator/analyzer. I also have successfully followed the manual and worked with the IP core. However, I've been encountering an error for several days, and I've been stuck on it ever since. The issue arises when I program the .sof file to the board and execute this command in the Linux terminal:

$ nios2-terminal -i 1

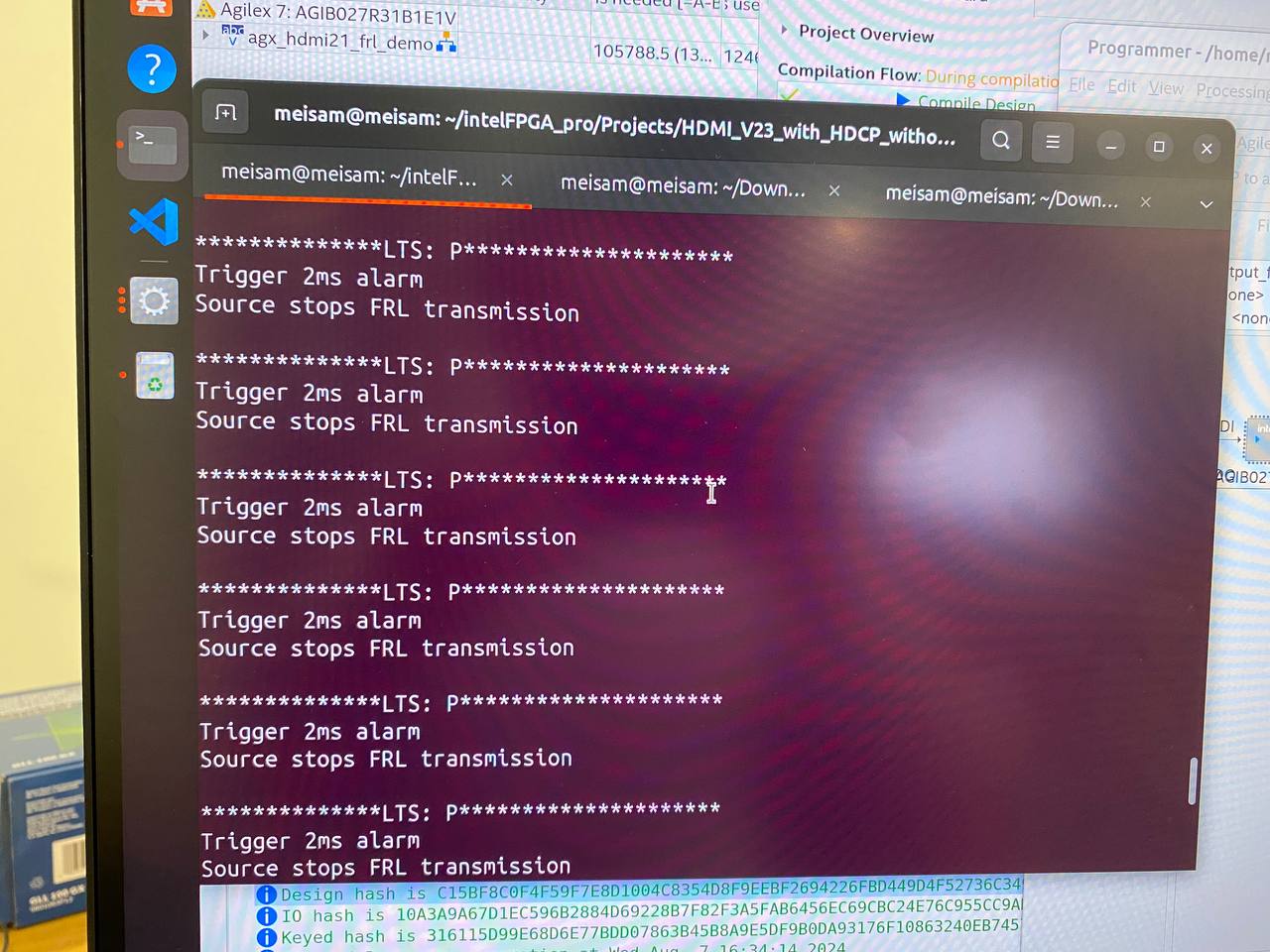

I encounter this error in the Nios II terminal (Figure 1):

**************LTS: P*********************
Trigger 2ms alarm
Source stops FRL transmission

After running this command, the status of the User_LEDs changes to what is shown in the attached image (Figure 2). I would greatly appreciate any assistance in resolving this issue.
