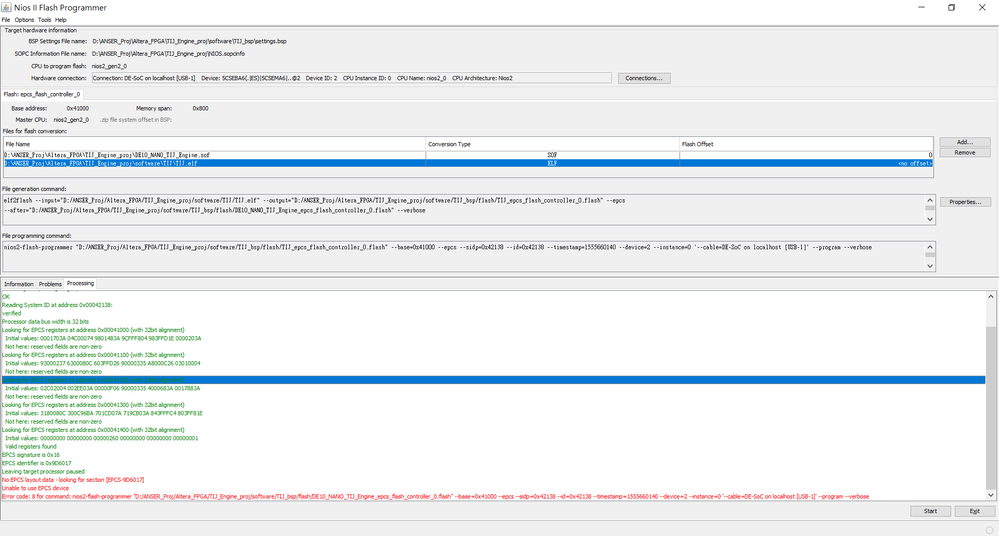

Error: No EPCS layout data - looking for section [EPCS-9D6017]Error: Unable to use EPCS deviceError: Error code: 8 for command: nios2-flash-programmer "D:/ANSER_Proj/Altera_FPGA/TIJ_Engine_proj/software/TIJ_bsp/flash/DE10_NANO_TIJ_Engine_epcs_flash_controller_0.flash" --base=0x41000 --epcs --sidp=0x42138 --id=0x42138 --timestamp=1555660140 --device=2 --instance=0 '--cable=DE-SoC on localhost [USB-1]' --program --verbose

Hi, May I know which Quartus version and EPCS device are you using? Are you using DE1-SOC (https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=205&No=836&PartNo=1) board?

https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=Taiwan&No=1047

Quartus (Quartus Prime 18.1) Lite Edition

Hi, Could you confirm which board version are you using as I suspect that you are using Rev A or B which is utilizing EPCS128 flash device? Please refer to https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=165&No=1046&PartNo=4 on how to check the board version

Error: No EPCS layout data - looking for section [EPCS-9D6017]

20 Replies

JohnT_Altera
Regular Contributor
6 years ago
Hi, May I know which Quartus version and EPCS device are you using? Are you using DE1-SOC (https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=205&No=836&PartNo=1) board?
- RWeiz
  New Contributor
  6 years ago
  https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=Taiwan&No=1047
- RWeiz
  New Contributor
  6 years ago
  Quartus (Quartus Prime 18.1) Lite Edition
JohnT_Altera
Regular Contributor
6 years ago
Hi, Could you confirm which board version are you using as I suspect that you are using Rev A or B which is utilizing EPCS128 flash device? Please refer to https://www.terasic.com.tw/cgi-bin/page/archive.pl?Language=English&CategoryNo=165&No=1046&PartNo=4 on how to check the board version
RWeiz
New Contributor
6 years ago
EPCS64
JohnT_Altera
Regular Contributor
6 years ago
Hi, That is what you set but I don't think EPCS64 is used on the board. Please confirm your board version.
- RWeiz
  New Contributor
  6 years ago

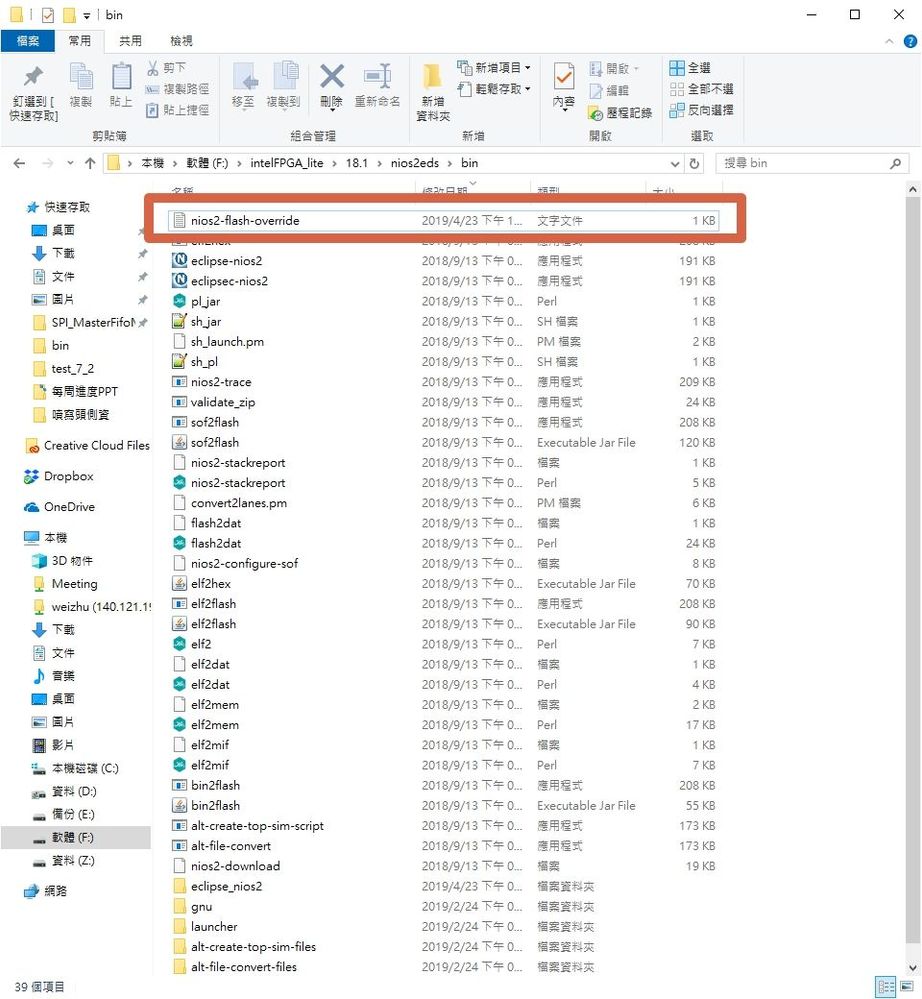

  [EPCS-010216] # EPCS64N
  sector_size = 65536
  sector_count = 128
  [EPCS-014017] # EPCS64N
  sector_size = 65536
  sector_count = 128
  [EPCS-9D6017] # EPCS64N
  sector_size = 65536
  sector_count = 128
  [EPCS-012018] # EPCS128
  sector_size = 262144
  sector_count = 64
  [EPCS-FF] # EPCS64N
  sector_size = 65536
  sector_count = 128
RWeiz
New Contributor
6 years ago

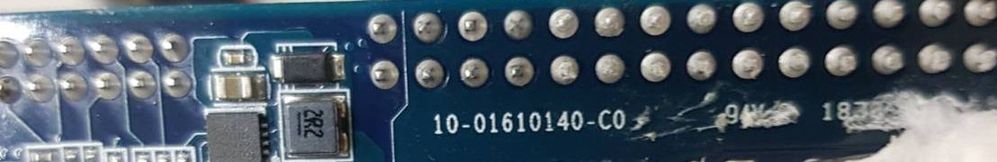

Rev.C
RWeiz
New Contributor
6 years ago

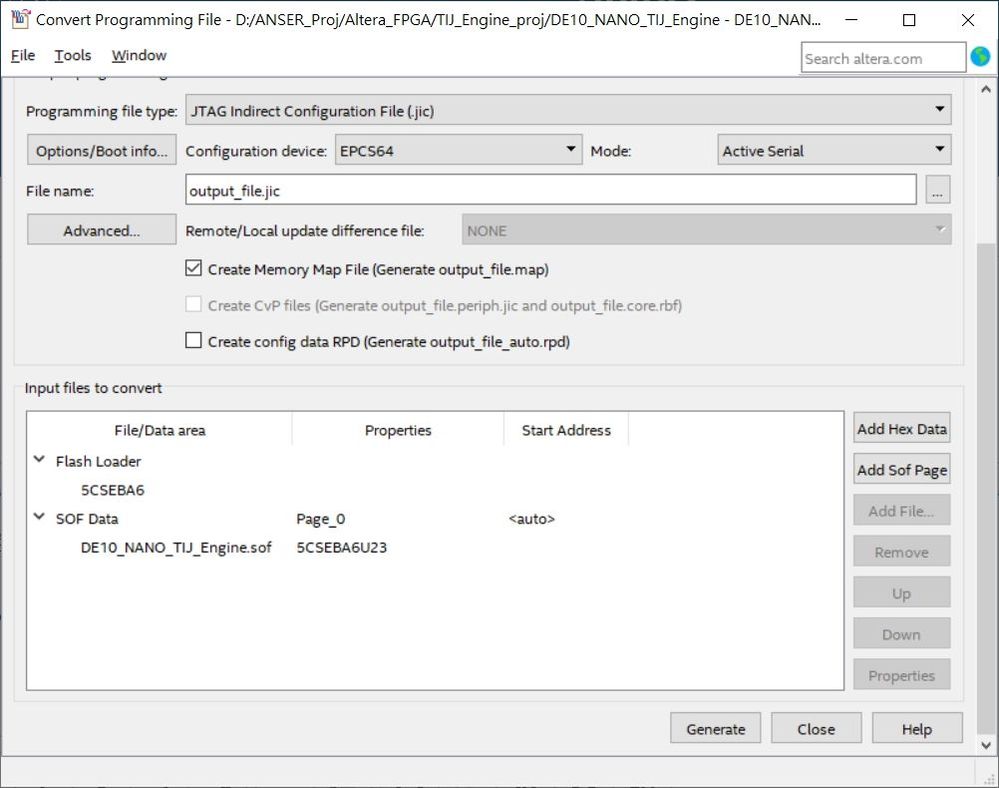

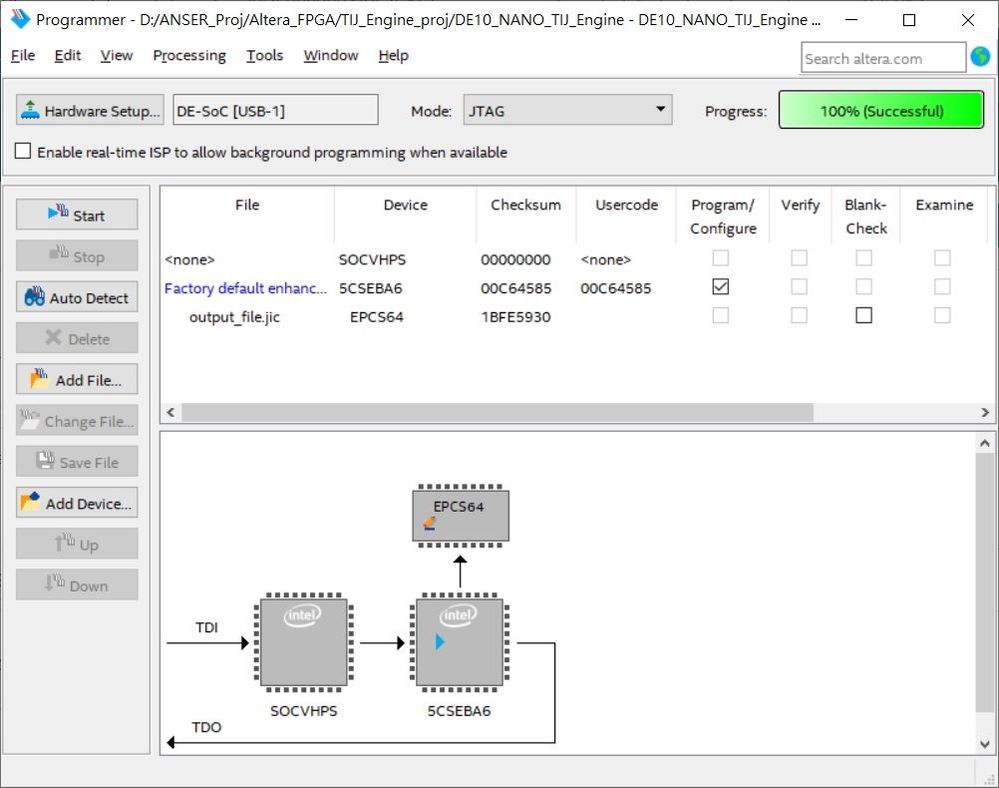

我的JIC可以燒錄成功

configuration device: EPCS64

我的設備，版本
RWeiz
New Contributor
6 years ago
JohnT_Altera
Regular Contributor
6 years ago

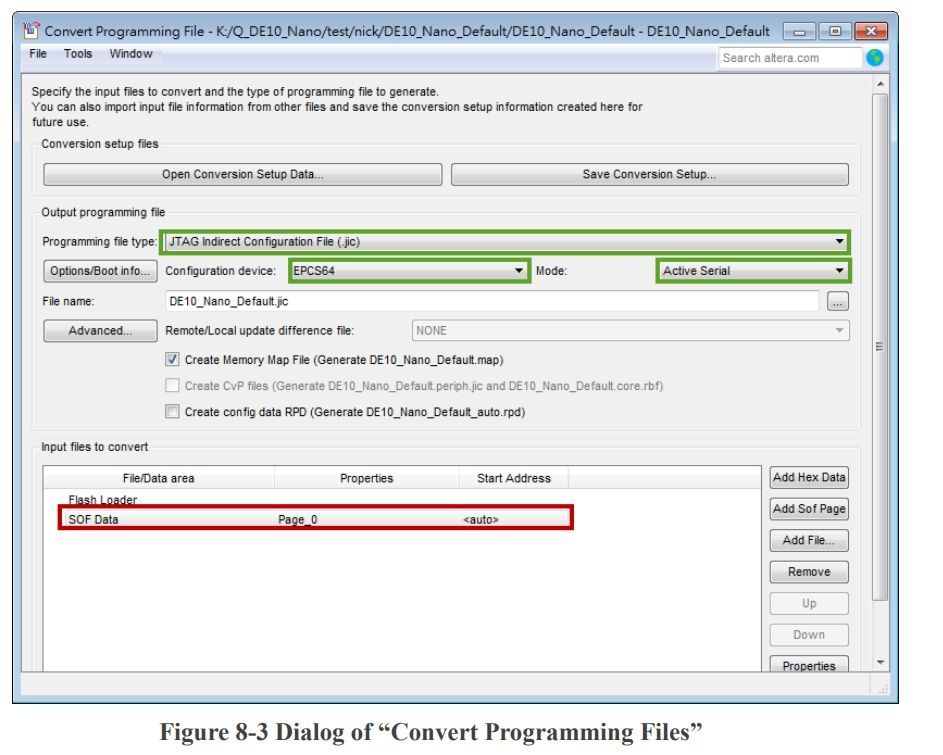

Hi, Do you follow the user guide from Terasic chapter 8.5?
RWeiz
New Contributor
6 years ago
chapter 8.5 我有跟著做
