Cyclone IV GX110 power estimation, I'm very suspicious

I'm worried I'm driving the power play power estimator wrong as the predicted power consumption seems on the low side. I really don't want to run out of core current, so I'm using a buck switcher that produces the 1.2V at up to 3A. Is there a way of separately sanity checking this, or getting an expert opinion?

The fitter reports 62,018 LEs and 264 multiplier 9-bit elements used, mostly clocked at 120MHz together with my PCIe hard endpoint.

Board Debug

5 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    2 years ago

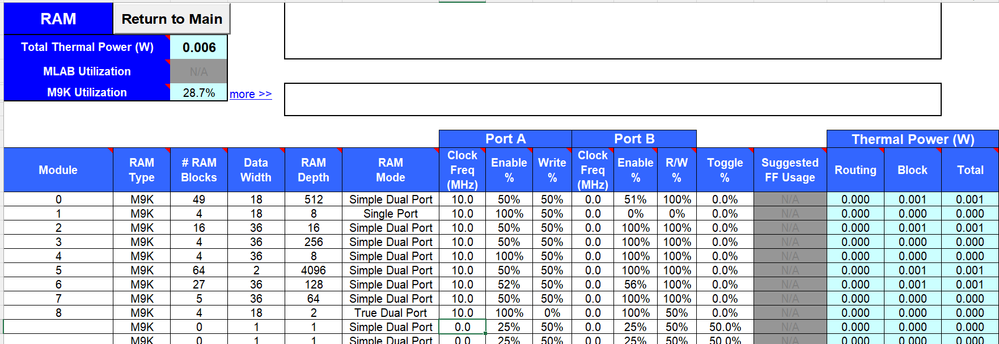

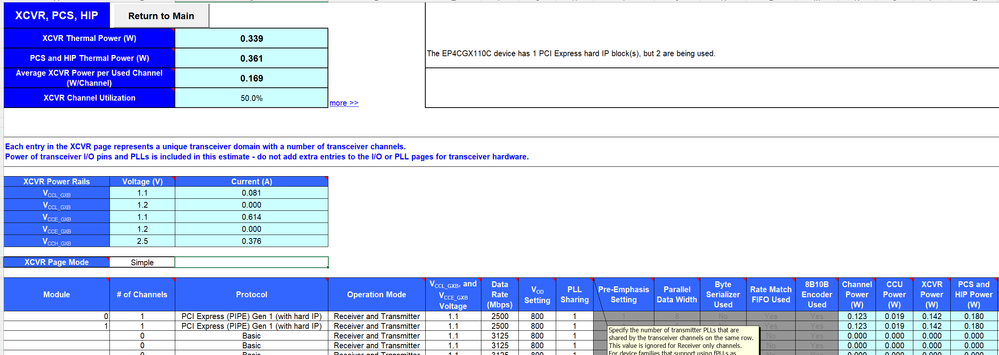

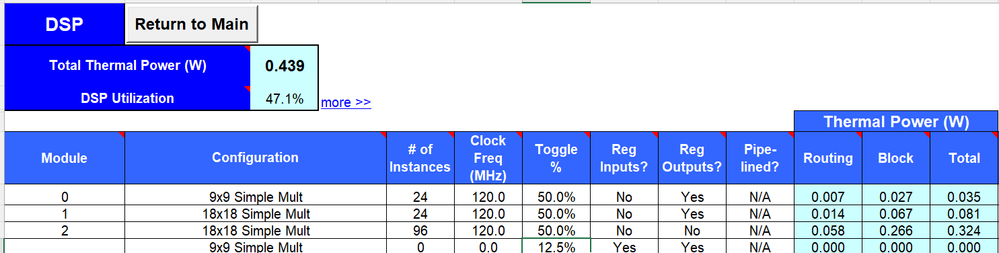

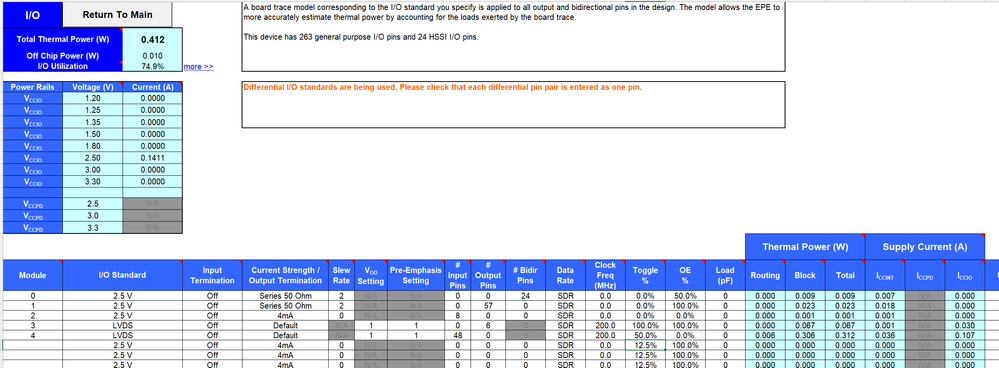

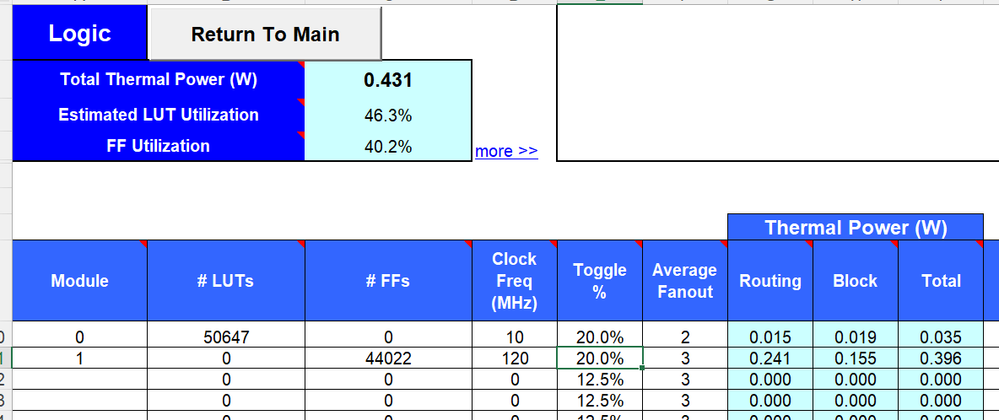

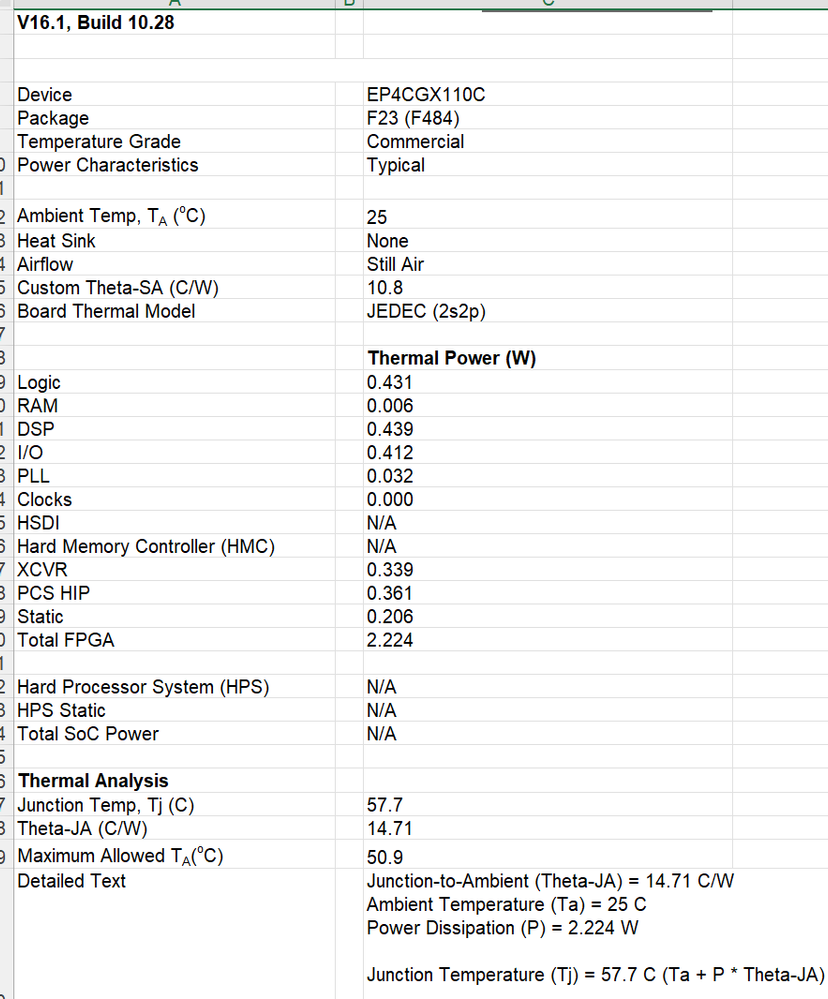

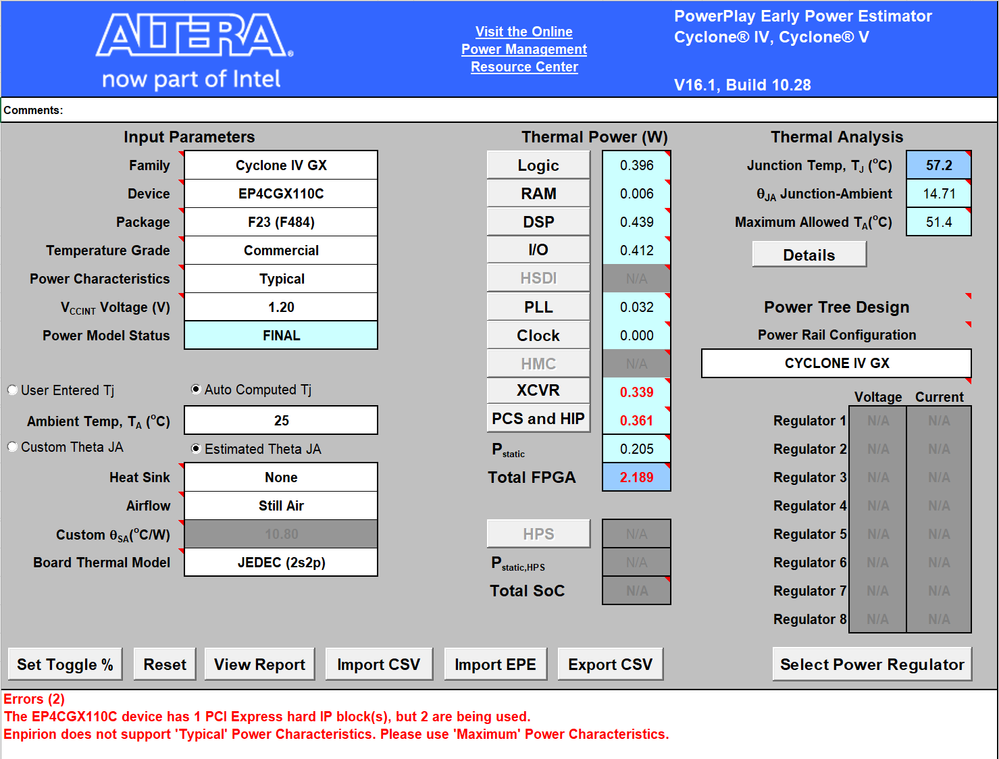

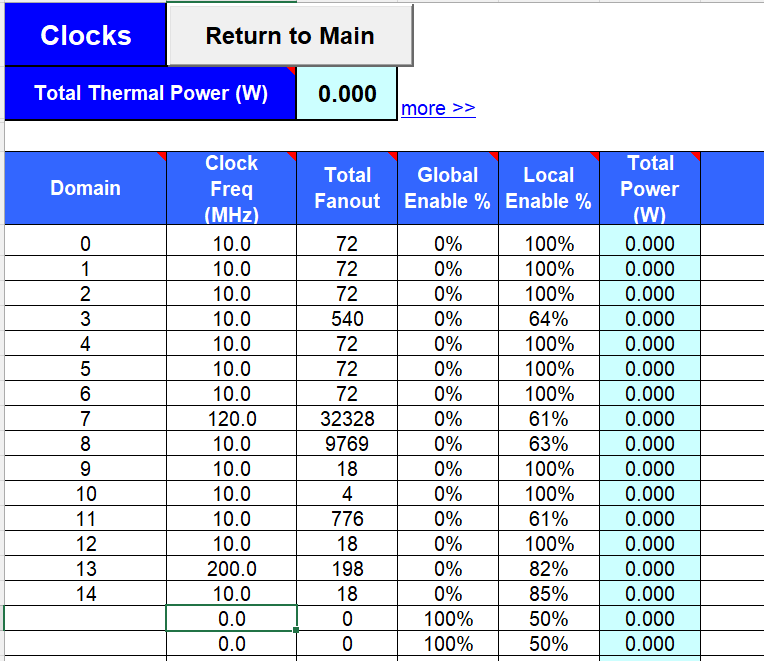

    Can you show what you've entered on the resource pages/tabs?

  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    As we do not receive any response from you on the previous question/reply/answer that we have provided, please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
