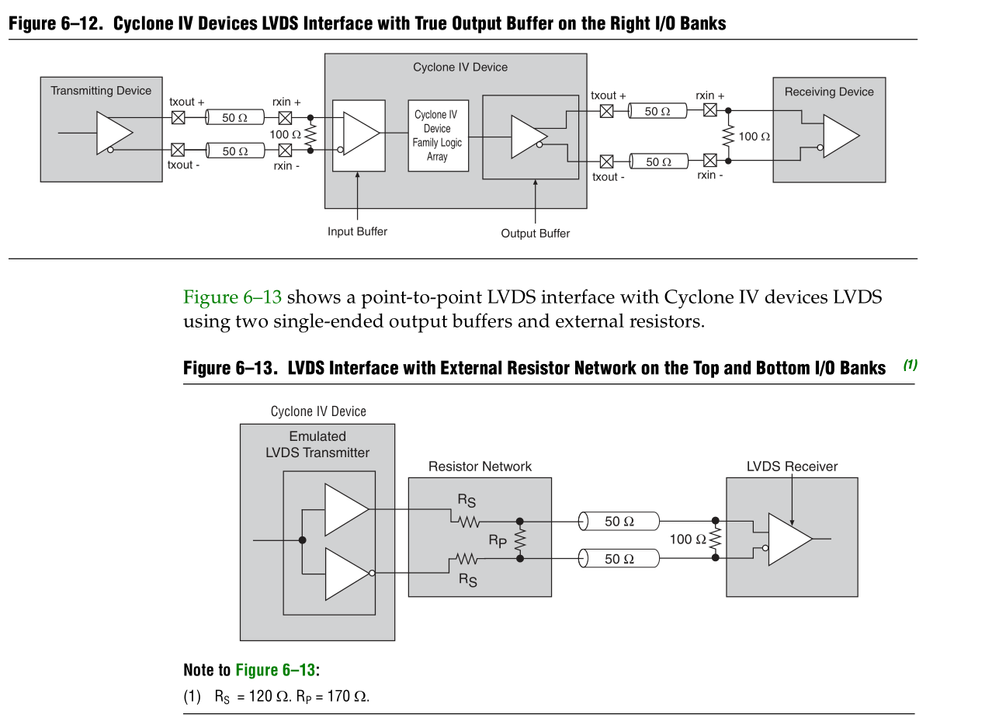

Cyclone IV GX still confused by LVDS driving

On the true LVDS drivers do I need to set any driver parameters, particularly series termination?

Generic Io

5 Replies

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hello,


    To answer your question. Yes, you need to set the driver parameter which is the series termination.


    Hope that answers your question.


    Best regards,

    Nazrul Naim


  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago
    There are no parameters for driver termination. Just set LVDS IO-standard.
  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,

    As we do not receive any response from you on the previous question/reply/answer that we have provided, for now I will set this case to Close-Pending.

    Regards,

    Nazrul Naim
