Agilex 5 HPS UART0

Good day,

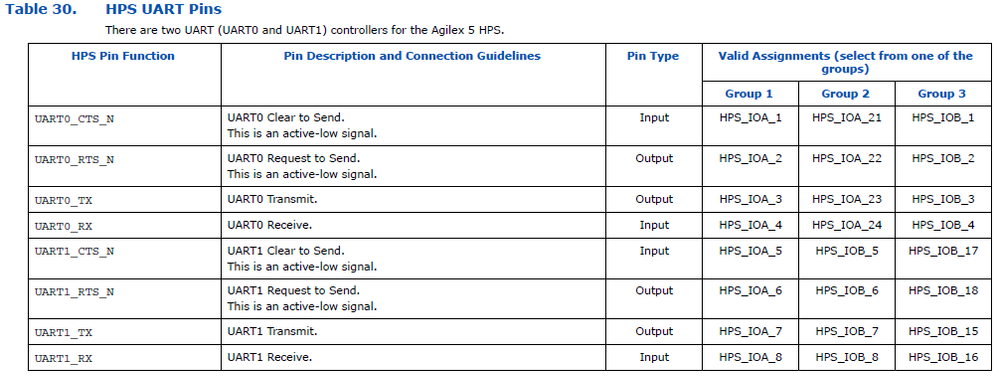

I would like to connect to UART0 of the HPS. The Pin Connection Guidelines shows the following possible pinouts:

I do not have any of these group pins available. Will it be possible to connect to UART0 via other GPIOs?

Kind regards,

Nicole

Fpga Devkit

5 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    No, those are the dedicated pin groups available for that peripheral.

    • Nicole04's avatar
      Nicole04
      Icon for Occasional Contributor rankOccasional Contributor
      1 year ago

      Hi,

      I would like to connect the following peripherals/controllers on the HPS:

      • USB0 (USB3 Controller)
      • USB1 (USB2 Controller)
      • UART0
      • HPS JTAG
      • eMMC (4-bit)

      Can any of the other peripherals be moved so that UART0 is accesible?

      Kind regards,

      Nicole

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor
        1 year ago

        The easiest thing to do is to try it out in the Parameter Editor for the HPS in Platform Designer. The tool will let you know if the peripherals you want to use will be available based on the choices you make there.

  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, Please login to ‘https://supporttickets.intel.com/s/?language=en_US’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
