Qsys component stuck issue (AVMM to AXI bridge)

Hi,

​

We have an issue of qsys component, but have no idea to debug further.

​

In our design, there is a Qsys component auto-generated by Quartus,

it transforms Avalon-MM interface to AXI4 interface.

​

According to SignalTap waveform, the component get a read request, but waitrequest signal is always high.

And it never send the request to the next AXI bridge.

​

Do you have any suggestion?

3 Replies

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    6 years ago

    Hi Chiaming,

    Is there any possible screenshots or files that you could provide to get better understanding?

    Thanks,

    Regards

    • CHung's avatar
      CHung
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      ​

      Hi,

      ​

      Yes,

      the attached image is signalTap waveform.

      It shows that hbm2_ccb bridge send a read request,

      but stuck at the request.

      ​

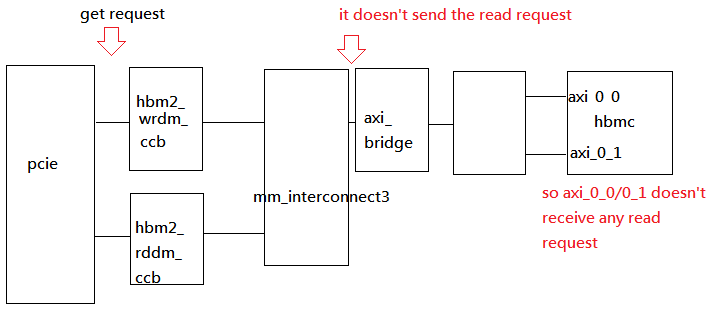

      The following figure shows block diagram. (Actually it's AN881 reference design for S10 MX FPGA dev. kit.)

      According to attached signalTap waveform,

      CCB send the read request to mm_interconnect_3 which is Qsys component.

      Then mm_interconnect_3 doesn't send the request to axi_bridge.

      We think there must be something wrong inside mm_interconnect.

      ​

  • maxmatok's avatar
    maxmatok
    Icon for New Contributor rankNew Contributor
    5 years ago

    Hi,

    I'm experiencing similar issue.

    I have AXI master with burst capabilities, which connects to PCIe txs slave.

    I got issues with QSYS interconnect so I removed any CDC and width change so that QSYS will only do AXI to Avalon adapter.

    I see issue that after first read, write, I get the fabric stuck, because the ARvalid coming from my master is not passing the interconnect towards the PCIe- in signal tap I see that read_i is never asserted.

    Please assist! This is an example of Intel design and IP cores that is NOT FUNCTIONAL.
