Problem in PIN Assignment on MAX10M50 Board

Hi, I am using DECA ALETRA MAX10 M50 development Kit. I am facing problem in Pin Assignment in Quartus Prime Lite 21. I have writen a code for SPI and I want to see MOSI SCLK and CS signals on oscilloscope. I want to take those signals on P8 or P9 header of development board.

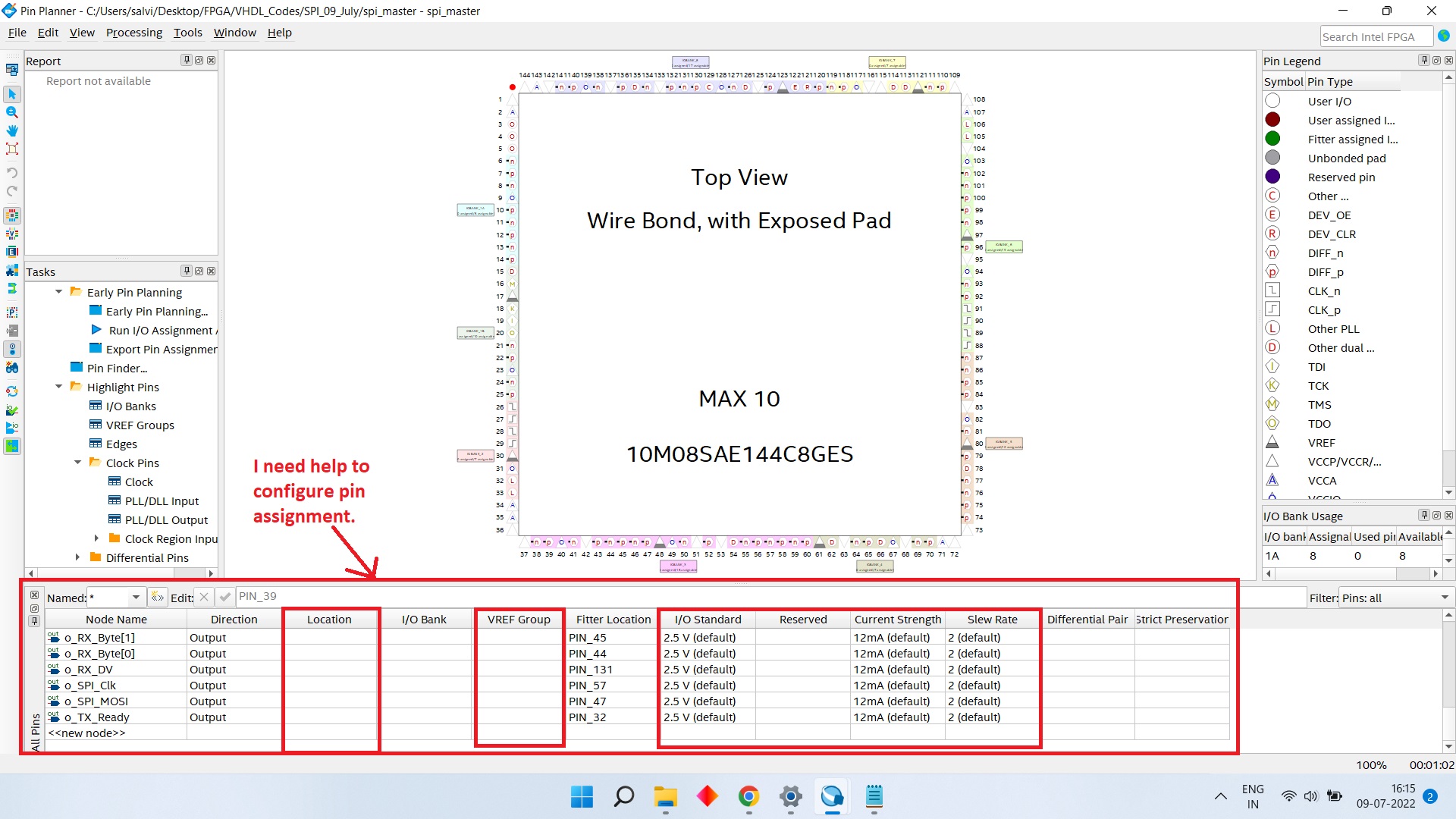

I am attaching screenshots of datasheet and pin planner.

4 Replies

  • KennyT_altera's avatar
    KennyT_altera
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Hi,


    Thanks for using Intel community forum,


    Kindly expect some delay in the reply due to holiday.


    Thanks,

    Kenny


  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    So what exactly is your question?

    If it's basic Pin Planner usage, you can just drag and drop the top-level signals from the All Pins list to the correct pins as defined in the info for your board (your 3rd screenshot) to set their locations.

    Other than that, was there any other issue?

  • Farabi's avatar
    Farabi
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hello,

    You can assign the pin manually using pin planner. Reference of the pin name as you shared in screenshot 155819.

    regards,

    Farabi

  • Farabi's avatar
    Farabi
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hello,


    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.


    regards,

    Farabi
