MAX 10 IBIS model

Hello all,

I am working on Intel MAX 10 FPGA ibis model,

model name -lvttl_rio_d4s2

I am unable to find Timing specifications for this 3.3V LVTTL model in datasheet ,

For simulation purpose I need rise and fall time of this model

Can someone please guide me, where would I find more details regarding that.

Thank you,

Shweta

5 Replies

  • Mengzhe's avatar
    Mengzhe
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Hi,

    ​

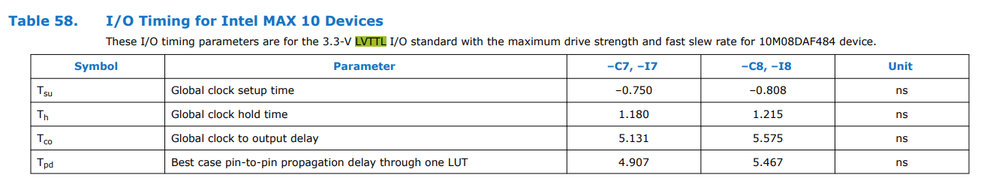

    MAX 10 datasheet contains the following information about I/O Timing in Table 58, which may be helpful to you.

    Best Regards,

    Mengzhe

    • Shweta_sawant's avatar
      Shweta_sawant
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

      Hello Mengzhe,


      Actually, we were searching for rise time and fall time specifically. we also went through the whole document but didn't get anythin related to this specific model number. (model name -lvttl_rio_d4s2)

      It would be a great help if we get the fall and rise time for 3.3LVTTL.

      Best Reagards,

      Shweta

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Hello,

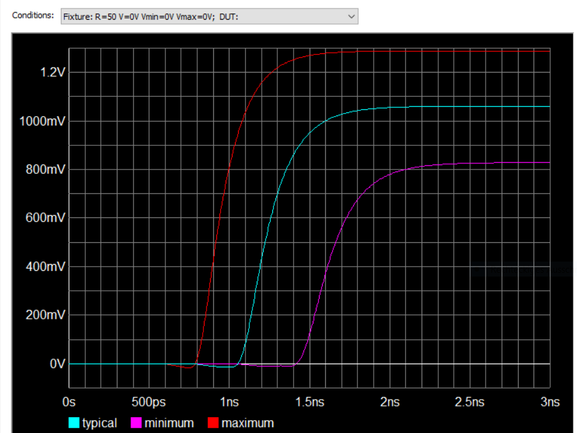

    IBIS file has rising and falling waveforms, unfortunately only with 50 ohm load.

    • Shweta_sawant's avatar
      Shweta_sawant
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

      Thankyou for the reply.

      We are not able to find the rise and fall time for LVTTL 3.3 in the datasheet. Can you please help us with it.

    • Shweta_sawant's avatar
      Shweta_sawant
      Icon for Occasional Contributor rankOccasional Contributor
      3 years ago

      Hello,

      Actually we need it on urgent basis. Can you please provide us the solution
