HEAT SINK ON ARRIA 10 KIT

Question

Hi,

Please can any one provide us with the part number and the make of the Heat Sink on ARRIA 10 Kit.

Further whether it is sufficient for complex ARRIA 10 Developments. Any Thermal Analysis Report available with the design team for choosing that heat sink - must surely be there, if any one can please provide us with the same.

It is not from COFAN as mentioned in the documents. I have confirmed with COFAN, they say it is not their make.

Will request the community to help us in that.

Thanks a lot !!!

mhada · Answer

I mean ARRIA 10 SOC Kit here. Please pardon the confusion here.

mhada · Answer

Waiting for a reply on this

ash_r_intel · Answer

Hi,You should be estimating the Power consumed by the FPGA based on the design that you will be programming in it. The Power Estimator will help you in that. It also provides heat sink recommendation based upon the estimated power.You can find more details and link to the tool from this document:https://www.intel.com/content/www/us/en/docs/programmable/683688/18-0-1/overview-of-the-early-power-estimator.htmlAs far as the heat sink on the dev kit is considered, the BOM document is correct. There might be some custom production by the manufacturer. Regards

mhada · Answer

Hi Ash,

We are doing all whatever you have mentioned to compute thermal requirements.

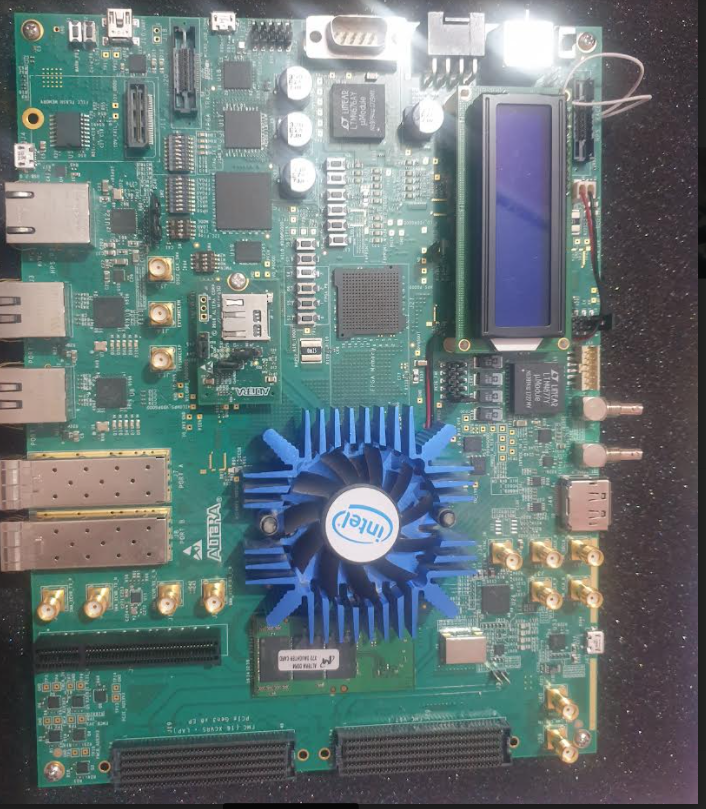

Please see the below image. Can you please let us know what is this heat sink that comes along with the kit and its specifications?

mhada · Answer

This is not a cofan item. I have spoken with them.
