Cyclone V rmgii KSZ9031RNX terrasic de10-nano => tcp retransmission

hello,

we use the terasic de10-nano board and transferring a huge amount of data bidirectional. The data is copied with scp. Copy data from the pc => de10-nano board is okay. Copy data from the de10-nano => pc we see with wireshark tcp retransmission errors.

we have an custom cyclone v board and the micrel KSZ9031RNX phy. we use an debian system with kernel version 4.15 (i try different versions). if we transfer data with scp it result in the same tcp retransmission errors. i change the rgmii skew timings, but no setting is without retransmissions.

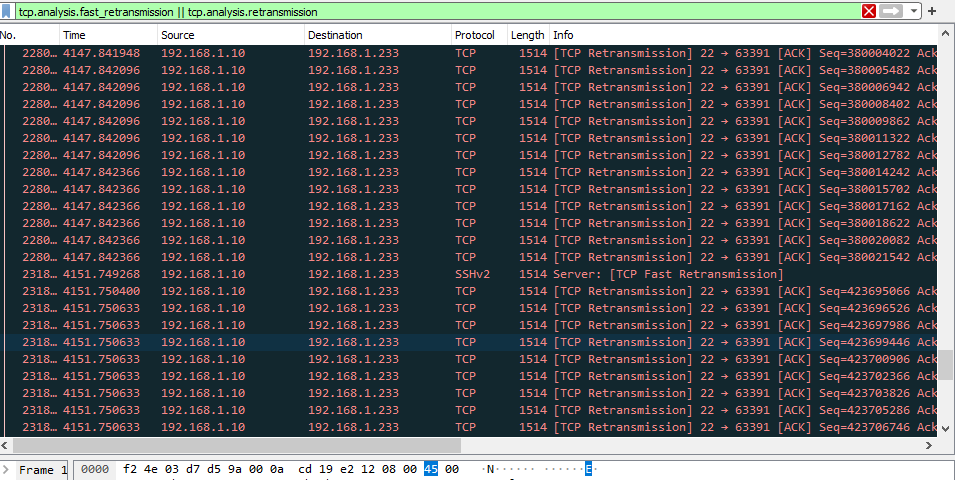

i ve attached an wireshark screenshoot.

please help me

can someone check if they have the same issues with the cyclone v, or with the terasic board?

i can upload an wireshark capture, but it is round about 200MB.

thanks a lot

4 Replies

  • Silvan's avatar
    Silvan
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Hi qwitza,

    We use an Arria 10 device. But I think the HPS and Ethernet part is quite similar to the Cyclone V. As you already found in this forum, we had an issue which looks quite similar to yours.

    After many tests and debugging I fond a solution which works for the moment. I never found the exact root cause of the issue, but it works with the following software releases:

    u-boot: 2021.07

    Linux Kernel: 5.10

    Fact is, that in my case an update just of the Linux kernel was not enough! I really don't know the root cause, but it seams that this combination of u-boot and kernel works.

  • Kshitij_Intel's avatar
    Kshitij_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi,


    In a TCP/IP Client-Server Model arch, TCP retransmission errors can happen ONLY when the transmitting end does not receive TCP-ACK from the receiving end.


    Few possibilities of NOT receiving TCP-ACK are:


    1. The receiving end sent back TCP-ACK is LOST in transit.
    2. The transmitting end TCP-DATA is LOST and it did not reach the receiving end at all.


    it's normal to see TCP retransmission, but a high number can impact traffic flow.


    Usually it's cabling that it's not so good, and causes packet drops.


    Check for errors along the traffic path.


    Also, you could issue an extended ping see if packets are lost... also do a traceroute and see if there is unusually large delay at a particular hop.


    If packets are lost on the ping on and off it could be a load balancing issue. If you know there is load balancing somewhere in your network, one path works and one path doesn't work causing some packets to be lost and some to not be lost.


    Also, a lot of retransmissions could be the result of port buffer overflow, and either Tx or Rx or both are dropping packets.


    Hope these inputs will resolve your issue.
