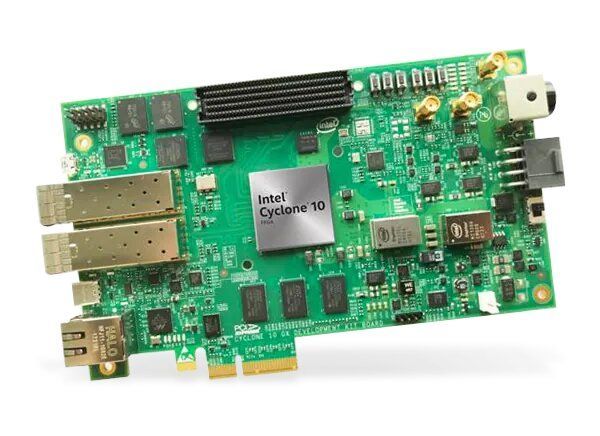

Cyclone 10 GX FPGA Dev Kit - Pin Assignments

Dear Community,


I want to program the Cyclone 10 GX FPGA Dev Kit with a custom PCIe project and I am having difficulties with the pin assignment (for the qsf file). I was able to determine some of the pin numbers from the schematic (https://www.mouser.de/pdfdocs/c10gx-dev-kits-board-a1-release.pdf), but not all and I am having trouble determining the pin attributes.

E.G.:
What is the pin number of the 50MHz clock?
What is the the Pin-Type and voltage for the user LEDs and user push buttons?

What is the Pin-Type for the PCIe TX and RX-Pins?
Where can I find this information?

Many thanks

4 Replies

    • Zarquin's avatar
      Zarquin
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Hello FvM,

      Unfortunately I could not find this information in the Dev-Kit schematic and user manual.

      I saw the cyclone-10-gx-kit-collateral.zip link, but i couldn't download it: Access Denied.

    • Zarquin's avatar
      Zarquin
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Hello FvM,

      O.K. I suceeded to download cyclone-10-gx-kit-collateral.zip from anther place than intel and in the
      qsf-files of the examples were lots of qsf-files (see one of them in the attachment).

      So, thank you very much.

      Best Regards

  • Wincent_Altera's avatar
    Wincent_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi


    Seen like your problem had been solved by the community support.

    Thanks FvM for helping on this.

    If you feel your Intel Forum Support experience was less than a 9 or 10,

    please allow me to correct it before closing or please let me know the cause so that I may improve your future support experience.

    Regards,

    Wincent_Intel
