Hello, I'm following Arria 10 SoC Development Kit User Guide and I would like to run the Board System Test. It is the first time board is powered on. SD seems to have an starting image. It contains 3 files: socfpga.rbf socfpga_arria10_socdk.dtb zImage However when board is switched on LED D17 is on permanently. The following sequence is performed at init. D24, D19, D20, D39 ON D24, D20, D39, D17 ON Could you help me? Thank you in advance.

Hello, I have built the SD card image according to this guide https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRD and now is working. I can read "No IP obtained ALTER:COM/SOCQS" in LCD screen. However when I execute Board System Test, I receive the following message: "The sof file is not exists!" I changed switch status accroding to Arria 10 SoC Development Kit User Guide 4-2: SW1: ON-OFF-OFF-OFF SW2: All OFF SW3: OFF-OFF-ON-ON-ON-OFF-ON-OFF I addition, following the instructions from Running Sample Linux Applications secction from https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRD I do not receive any answer when I send root@arria10:~# cd /home/root/intelFPGA root@arria10:~/intelFPGA# ./hello

Hi RubenPadial,I think there is nothing happened after you run the linux hello application because the one that you built does not have it.Try the pre-built verison using the Creating SD Card on Windows on the link you have shown previously,https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRD1. Download and uncompress the SD card image from https://releases.rocketboards.org/2022.12/gsrd/a10_gsrd/sdimage.tar.gz The extacted file is named gsrd-console-image-arria10.wic.2. Rename the wic file as sdimage.img3. Use Win32DiskImager to write the image to the SD card.The system should able to boot up normally and able to execute the hello application.Thanks.Regards,Aik Eu

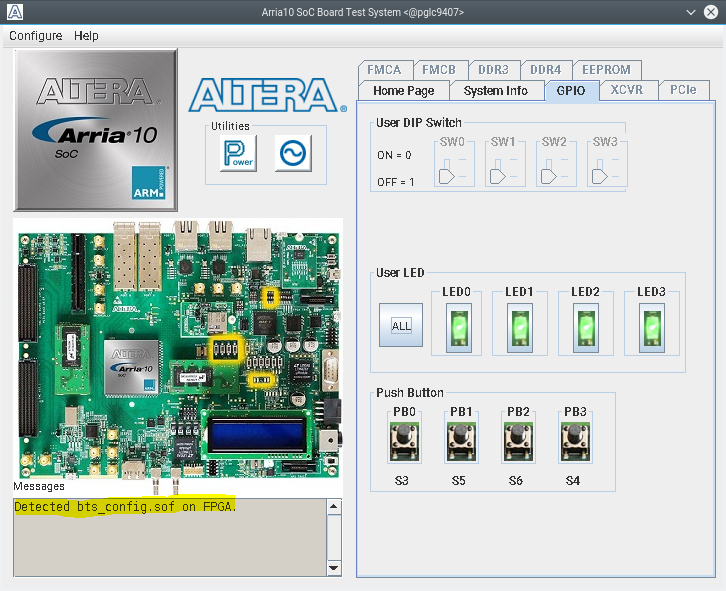

Hello, This was already done. Examples from https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRD are now working. I was not able to communicate with the board becasu I was using the wrong ending charater, that is not spcified in the guide. CR ending character is needed. However "Board System Test" doesn't work. I receive the following message: "The sof file is not exists!"

Hi RubenPadial,May I know how you run the BTS? Example like there will be some default files which the BTS supported which included in the package installation.Can check with the default switch and jumper settings to run the BTS as below:https://www.intel.com/content/www/us/en/docs/programmable/683526/current/default-switch-and-jumper-settings.htmlThanks.Regards,Aik Eu

Hello @aikeu The configuration you sent in the previous message correspond to Arria® 10 GX FPGA development board. To run BST I followed instructions given in Arria 10 SoC Development Kit User Guide 4-2 (https://www.intel.es/content/dam/altera-www/global/en_US/support/boards-kits/arria10/soc/es2_files/A10-SoC-DK-UG_2.pdf) as I explained before. I was done after building SD card with https://www.rocketboards.org/foswiki/Documentation/Arria10SoCGSRD instructions because default SD doesn't work.

Forum Discussion

RubenPadial

Contributor

3 years ago

Arria 10 SoC DevKit: LED D17 (Error) is ON

Hello,

I'm following Arria 10 SoC Development Kit User Guide and I would like to run the Board System Test. It is the first time board is powered on. SD seems to have an starting image. It contains 3 files:

socfpga.rbf
socfpga_arria10_socdk.dtb
zImage

However when board is switched on LED D17 is on permanently. The following sequence is performed at init.

D24, D19, D20, D39 ON
D24, D20, D39, D17 ON

Could you help me?

Thank you in advance.

15 Replies

aikeu
Regular Contributor
2 years ago
aikeu
Regular Contributor
2 years ago
Hi RubenPadial,

May I know what is the status for the issue?

Thanks.
Regards,
Aik Eu
aikeu
Regular Contributor
2 years ago
Hi RubenPadial,

As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

Thanks.
Regards,
Aik Eu
