Modelsim instance window error

Hello, I have a problem with ModelSim Altera Starter Edition 10.1d (used with Quartus II 13.1). The project is based on Cyclone III, so I cannot use newer software. The problem started, when I mov...
  • lutzek's avatar
    lutzek
    3 years ago

    Hello Richard,

    Thank you for support. That was on revision: 2012.11. There is definitelly some compatibility problem, because I run the project with Modelsim Starter Edition 10.5b revision 2016.10 and it works perfectly.

    So my advice to other users would be to write a Cyclone III code in Quartus II 13.2 and test it in Modelsim 10.5b that is in a package with Quartus Prime.

RichardT_altera's avatar
RichardT_altera
Icon for Super Contributor rankSuper Contributor
3 years ago

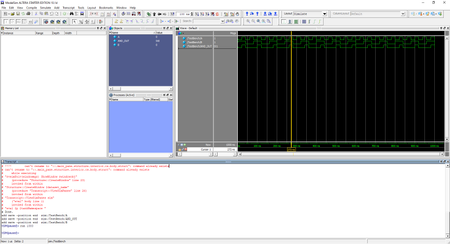

I am able to install ModelSim ALTERA STARTER EDITION 10.1d Revision: 2012.11 and run the simulation successfully.

Below are the steps that I did.

  1. I just create a new project in Modelsim, added the Test_Project and the TestBench files that you provided.
  2. Compile both files.
  3. Run vsim -L altera_mf_ver TestBench -t ns
  4. Add wave and Run 2000

I think this is mostly a bad installation but you mentioned you have try to reinstall before, so I am stumped as to why you are still facing this issue.

https://community.sw.siemens.com/s/question/0D54O00006mFTprSAG/modelsim-cant-open-structure-window

Best Regards,

Richard Tan

  • lutzek's avatar
    lutzek
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Hello Richard,

    Thank you for support. That was on revision: 2012.11. There is definitelly some compatibility problem, because I run the project with Modelsim Starter Edition 10.5b revision 2016.10 and it works perfectly.

    So my advice to other users would be to write a Cyclone III code in Quartus II 13.2 and test it in Modelsim 10.5b that is in a package with Quartus Prime.
