PLL phase difference in this way

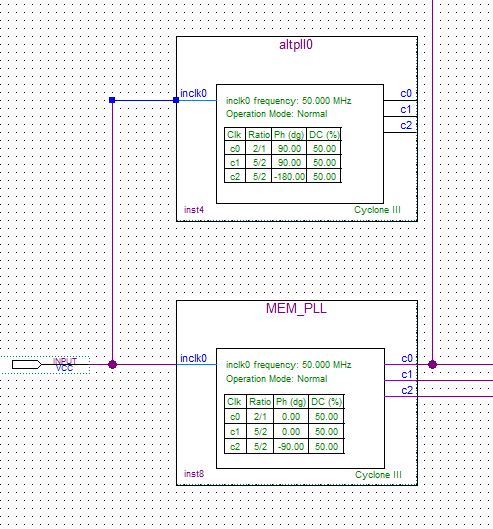

under this construction , can c0 output from inst4 have a phase difference of 90 degree relative to c0 output from inst8 ???

1 Reply

  • Altera_Forum's avatar
    Altera_Forum
    Icon for Honored Contributor rankHonored Contributor

    Sure. They're both 2x clocks so they'll be edge-aligned(and Quartus will analyze any delay differences). Where it doesn't work is if you create a slower clock, such as a 1/2x clock, or 25MHz clock, with the two PLLs. There is no guarantee that theyir generated clock will be aligned, i.e. half the time the rising edge of one will correspond with the falling edge of another.
