MAX 10 pinouts

Question

I'm laying out a PCB for MAX 10's 10M08/16SAU169C8G.  I would like to have a pinout document for both the 10M08SAU169C8G and the 10M16SAU169C8G. FPGAs.

I can't find the pinout documents for either part.  In the Intel MAX 10 FPGA Device Family Pin Connection guide it says: Intel recommends creating a design, enter I/O assignments and compile the design then Intel Quartus Prime software will check pin connections.  I have done this.

This is all well and good but Pin Planner doesn't help me with specific pins (i.e. which CLKx_p is CLK_p on pin C10 and which CLKx_n is it's complement).   I need to know what signal a specific pin is used for to be able to create my PCB..

Would someone direct me to the solution to my problem?

ash_r_intel · Answer

Hi,

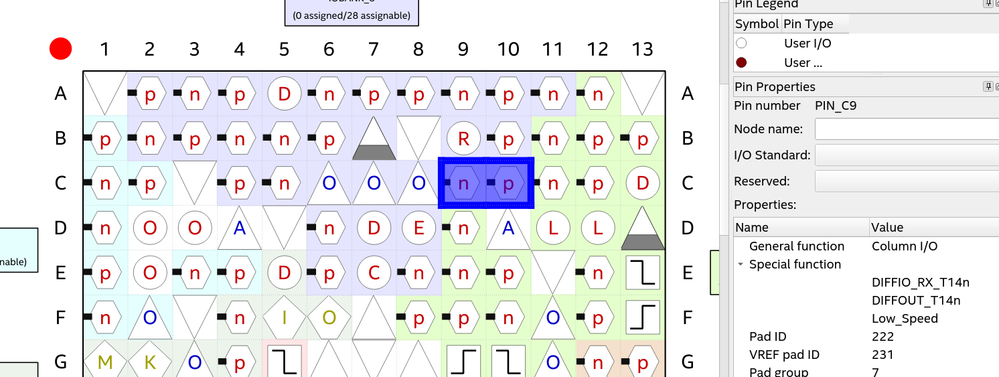

The Pin planner shows pins with p and n in hexagon boxes. For 10M08SAU169C8G, C10 pin is a 'p' pin and corresponding 'n' pin is C9. If you hover your cursor over these pins, you will find names as DIFFOUT_T14p and DIFFOUT_T14n. You can also check the pin properties.

Attaching the pinout files in CSV format.

Regards

jfk · Answer

Thanks Ash_R_Intel,

This is exactly what I was looking for.

JFK

c75 · Answer

Can you also provide pinout for the 144LQFP, 10M02SCE144C8G?

ash_r_intel · Answer

Pinout files for all the devices can be found on the following link:Pin-Out Files for Intel Field Programmable Gate Arrays (FPGAs) | IntelRegards
