"CONF_DONE pin failed to go high in device 1" - MAX 10 FPGA Dev

Hi, I am testing a design on MAX 10(10M16SAU169I7G) device with tool of quartus prime lite editon v16.0 and for programming ALTERA USB blaster rev.c is used i am performing a single device confi...
Abe's avatar
Abe
Icon for Frequent Contributor rankFrequent Contributor
6 years ago

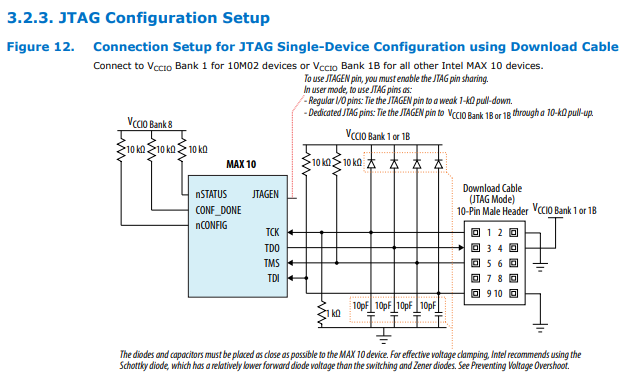

Have you connected the JTAG pins with correct Pull-up/PD resistor values.. 10K .. Check the Max10 confguration guide here : https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/max-10/ug_m10_config.pdf

Please make sure you follow the pin connection guidelines mentioned here:

https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/dp/max-10/pcg-01018.pdf

The DEV_OE pin needs to be pulled low as well as the DEV_CLRn pin.
