Bug in HDMI TX IP preventing back-to-back writes to HDMI I2C master

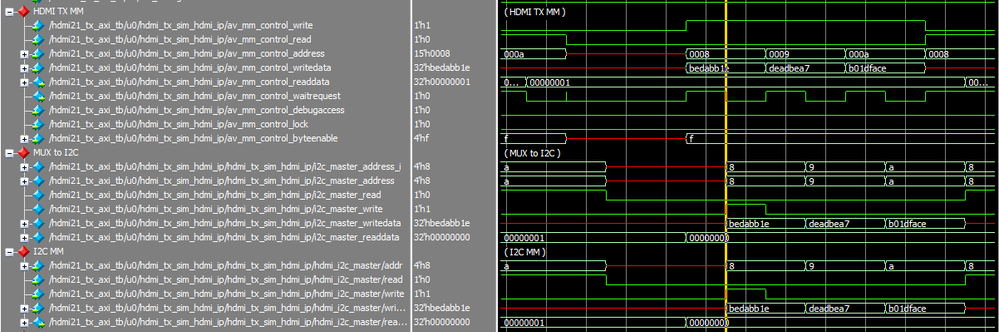

HDMI IP 23.2-19.7.2, being configured as Source/TX with FRL support, AXI4S video interface (VVP Full), and I2C master, does not accept back-to-back writes to I2C master registers. The attached simulation waveform demonstrates that only one write strobe (Avalon MM write pulse) was passed through the DEMUX to the I2C master, while the external Avalon MM master performed three writes (to SCL_LOW, SCL_HIGH, and SDA_HOLD). Registers read back sequence confirms that only the first register in the write sequence, SCL_LOW, is modified.

 
