New Contributor10M08DCF256I7G junction-to-case resistance
I'm looking for the junction-to-case thermal resistance of the 10M08DCF256I7G for a thermal analysis.
Forum Discussion
4 Replies
Caguicla_IntelHello suzanner,
Thank you for posting in Intel Ethernet Communities.
Your query will be best answered by our Intel Field Programmable Gate Array (FPGA) Support team, we will help you to move this post to the designated team for further assistance.
Please feel free to contact us if you need assistance from Intel Ethernet support team.
May you have a great day!
Best regards,
Crisselle C
Intel® Customer Support
JonWay_C_IntelFrequent Contributor
Thermal resistance info are stored here: https://www.intel.com/content/www/us/en/programmable/support/literature/lit-index/lit-pkg.html
Refine your search: Select your device. Then enter your part number.
suzannerThat directs me to this document
https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/packaging/04r00230-03.pdf
which doesn't contain any thermal resistance information
- JonWay_C_Intel

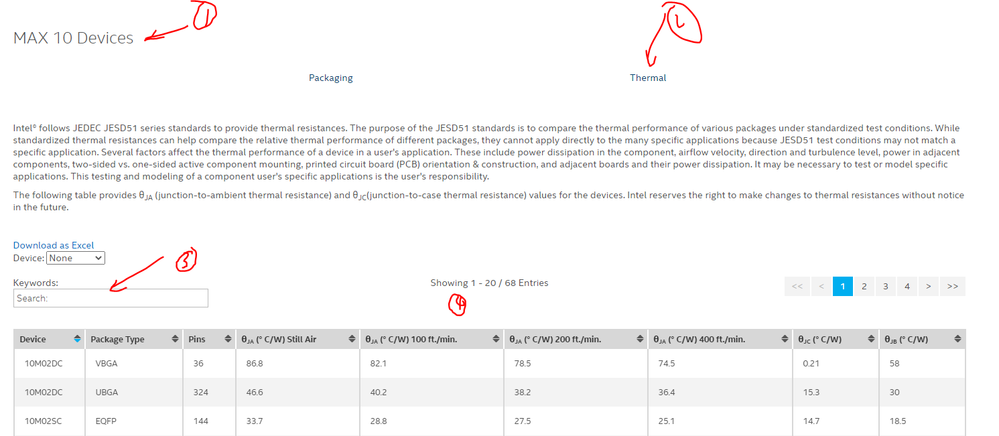

Follow the above steps
1) Select MAX10
2) Select Thermal (not packaging)
3) Enter your part number
4) Get your thermal resistance results
