Relation Between ALMs, LEs and LUTs : How to calculate the LEs and ALms based on LUT count for a given device?

Hi Ssrb,

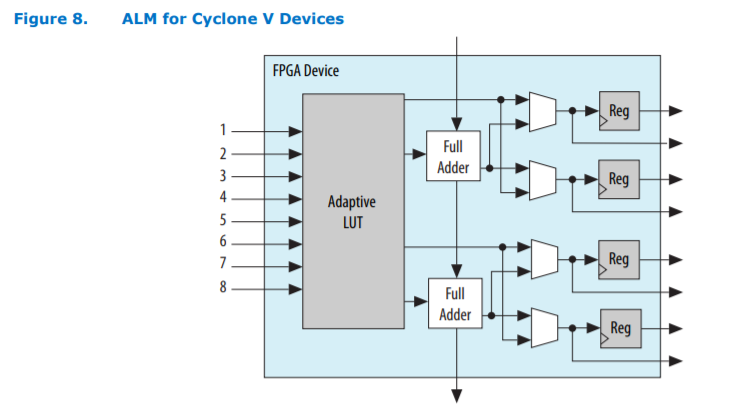

Cyclone V devices use a 28 nm ALM as the basic building block of the logic fabric. The ALM has an 8-input fracturable look-up table (LUT) with four dedicated registers.

(Source: https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/cyclone-v/cv_51001.pdf)

Thanks.

Best regards,

KhaiY

Hi,

This link details how to interpret the Fitter Resource Usage Summary Report

https://www.intel.com/content/www/us/en/programmable/quartushelp/17.0/mapIdTopics/mwh1465496451103.htm

Thanks.

Best regards,

KhaiY

Hi,

Do you have any updates?

Thanks.

Best regards,

KhaiY

Hi,

We do not receive any response from you to the previous question/reply/answer that I have provided. Please post a response in the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you with your follow-up questions.

Thanks.

Best regards,

KhaiY
