NIOS2 bidirectional IO port setting

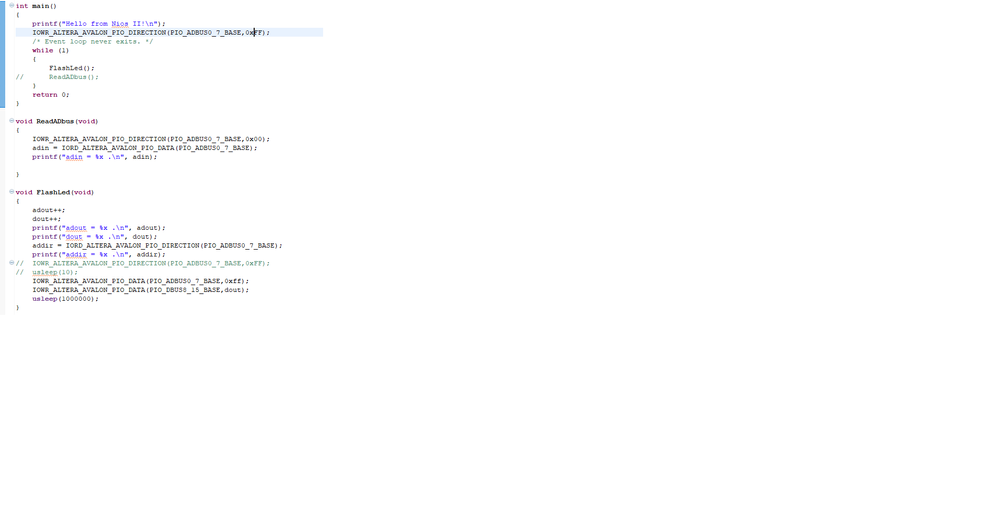

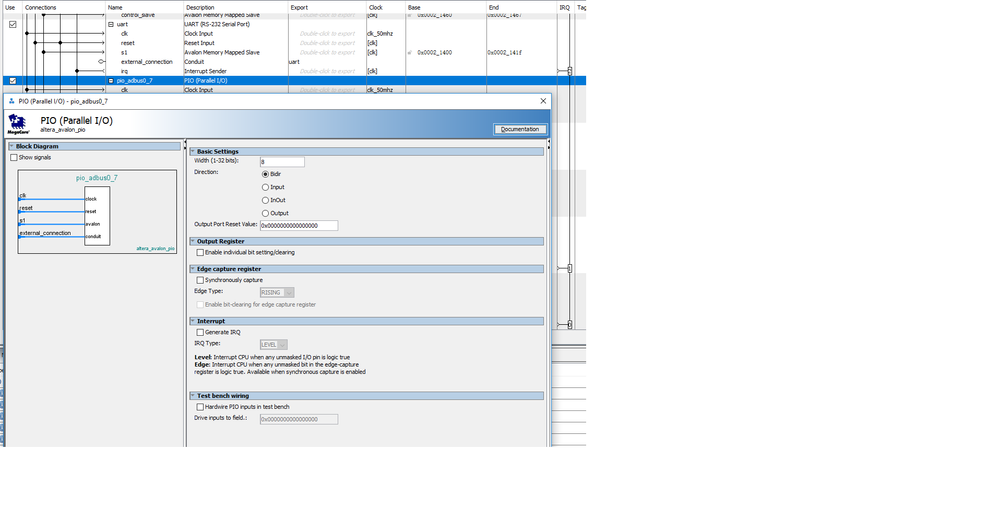

Set an 8-bit bidirectional IO port as output mode in NIOS2 code, but only 4 bits (bit 0, 1 ,4 ,5)can output correctly, and the other 4 bits hold out state 0.

3 Replies

  • Ahmed_H_Intel1's avatar
    Ahmed_H_Intel1
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi,

    please check the top level connection first. you can share with us the top level connection and the assigned pins for these LEDs.

    Regards,

  • VHou0's avatar
    VHou0
    Icon for New Contributor rankNew Contributor
    6 years ago

    Thanks you .I removed signaltap from the project, it works correctly.
