New ContributorI found out how to calculate the. rpd file size.
By inspecting the onchip_flash IP in dual mode For 10M08 the Image1 CFM resides between 0x2b000-0x4dfff = 143360 bytes.
This is the size of your .rpd file.
CFM Image 1(called also CFM0) is used as the "factory project", which is the starting project that will hold the manual_rsu design.
The 2 units of CFM Image 2(called CFM1) store together the same amount of memory as CFM Image 1 and are the target for RSU procedure.
As for the UART modules I intend to generate the 115,200X16 = 1.8432Mhz clock by the PLL IP instead the uart_clk_en signal.
Of course that I will need to bridge the clock spaces between the UARTS and the rest of the logic.
As for the ram module I don't understand what is the purpose of this module.
You have mentionted before that it is not required for the RSU activity.
Do you store the incoming stream of data in the RAM to overcome delays in writing to the FLASH(like a large FIFO) or what?
The RAM module, as I mentioned before, blocks most of the memory that is required for signal tap debugging.
If it is not neccessary to the design I will be gratefull if you can instruct me how to get rid of it.
and again, thank you for your time and knowledge.review
Contributor1. You dont need to use a PLL for UART. The UART module in code does it itself. You just need to change the clock frequency which is going to UART module according to your fpga's clock freq.
2. I cut down the ram module and the unnececarry UFM operations from the code. It is now %15 at logic elements and %0 in memory. I'm adding the new project to attachment. But I remembered that before you send the rpd, you have to clear the CFM sector that rpd file is going to write. You can use erase operation from the code (selection 2 in operations) for this purpuse but i dont remember exact number of CFM sectors. UFM-CFMs ranging between 1-5 in total. So you can try it.
New ContributorThank you jozephka99 for the meaningfull work.
A lot of space is free now.
Where in the code I need to make changes due to the type of my device 10M16 instead of yours 10M08?
ContributorAs I said first you change the FPGA model from project settings. And then you do the other changes that I mentioned above. Then compile the code so you can see any other missing changes that might broke the compiling. I think you don't need to do lots of changes. You should read the whole code and try to understand it. It is actualy very easy now. And you should read the Intel documentations about the dual boot, on chip flash and rsu. They help you when you stuck in the code.
New ContributorFrom the "MAX 10 user flash memory user guide":
Program Memory in Parallel Mode:
UFM Programming max time = 305uSec
UFM Reset max time = 250 uSec
Tota max time for 4 bytes = 555uSec
for the UART the maximum allowable rate will be = 1/(555uSec/40) =72Kbps
therefore it is advisable to use the rate you have chosen: 57,600 bps in order to avoid losing data.
ContributorOh, I see now. This explains why am I not successful when I tried 115200 baud rate. Thanks for clearing that out.
New ContributorHi,
In your code of UART module:
constant DIVIDER_VALUE : integer := CLK_FREQ/(16*BAUD_RATE);
This means that for CLK_FREQ = 12.6e6 DIVIDER_VALUE should be = 13.672
Because it is an integer the actual value is 13.
In consequence to this value the accuracy of the uart baude rate is 13.672/13 = 1.0517 or +5.17%.
The problem is that the error is accumulating through the entire transmission and since your state machine starts at the middle of the start bit you have only 50% of the bit width that is allowed to drift. in fact after 8 bits you are accumulating an error of more then 40%, which is still OK but can be risky.
For baud rate of 115,200 DIVIDER_VALUE = 6.8359 and after converted to integer is actually 6 or +13.9% which is, of course a situattion that will not work.

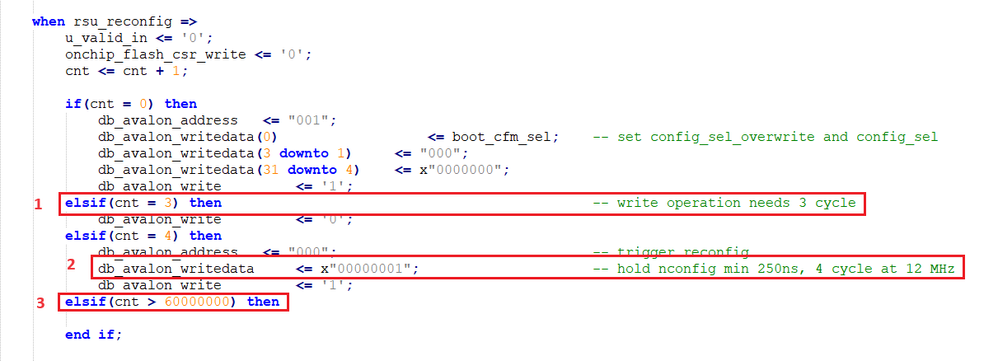

New ContributorCan you, please, explain in the follwing code of yours the following issues:
1. What should I do to for "write operation needs 3 cycle".
2. "hold nconfig min 250ns, 4 cycle at 12 MHz" isn't that an automatic command and I'm unable to change the number of cycles?
3."elsif(cnt > 60000000) then" has no continuation and also "db_avalon_write" remains at '1' for good?
ContributorFirst you should know that I gather this timing informations from Intel's configuration user guide (https://www.intel.com/content/www/us/en/docs/programmable/683865/current/fpga-configuration-overview.html) and flash memory user guide (https://www.intel.com/content/www/us/en/docs/programmable/683180/18-0/user-flash-memory-overview.html). You should read them. Your cycle needs will change if your clock is different. After that:
1.Actually you just wait for 3 cycle for "write operation". I did this with using counter. Counter increases every clock cycle. So in 3. cycle it has been waited for 3 cycle = 250ns at 12MHz.
2.As I said you calculate the cycles recpect to your clock cycle. The important thing is the time (250ns) not the cycle count. And it is not an automatic command you drive the bits. If you clear the bits earlier, you may be dont get what you want.
3.Yes it has no continuation because 250ns after the writing the reconfig bits, the device must be restart itself. So I wait here until device restart itself and hold it for 60000000 cycles just for guarantee the operation. So you can change it at least min 250ns.

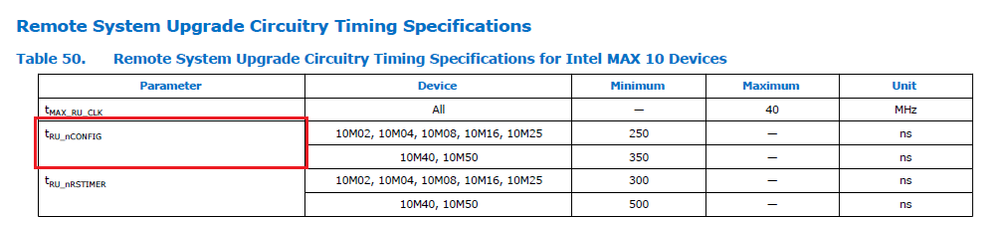

New ContributorI found in the datasheet the parameter the table of parameters:
I assume that this is the source for the figure 250nS. So, since I'm using 25Mhz CLK I need to change the cnt= 3 to cnt = 7 for db_avalon_write <= '0';
The condition cnt > 60000000 fits to a time of 60,000,000/12.6e6 =4.76 Sec.

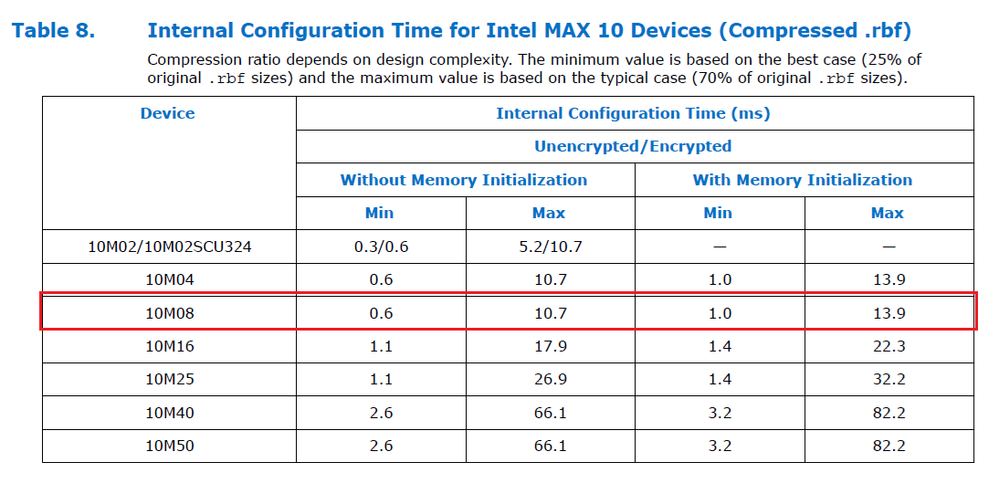

The only figure I can find is in the following table:
Do you any insights about this issue?

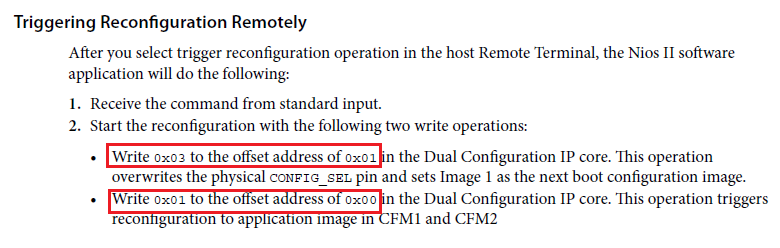

New ContributorIn AN741:

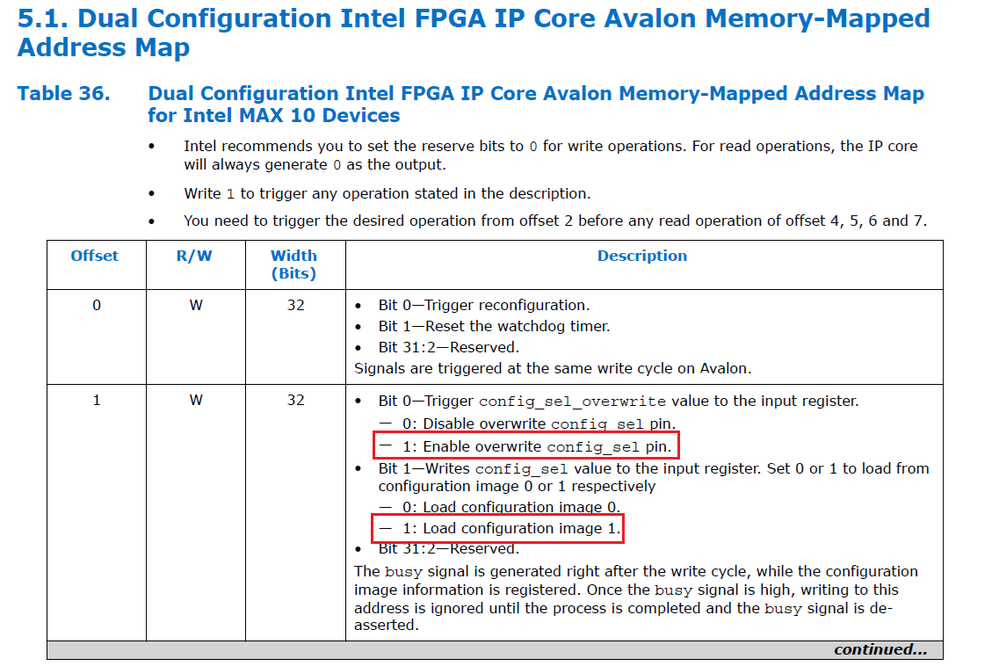

Which complies with the UG-MAX10-Configuration

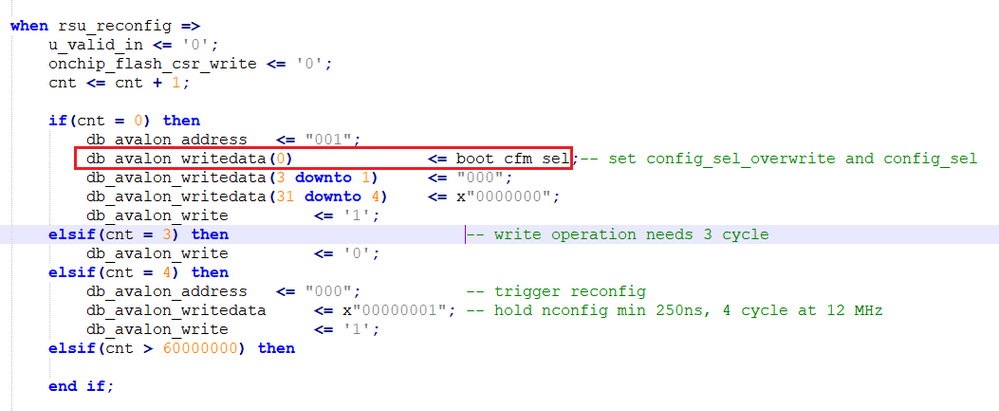

In your code :
The signal boot_cfm_sel should be assigned to writdata(1) and writdata(0) should be set to '1' in order to ignore the physical
config_sel pin and setting the loading image according to boot_cfm_sel.
ContributorLast counter value is not important. It is just waiting for restarting the device. You can change it. And AN741 is not complies with UG-MAX10-Configuration. In AN741 they assign reg 1 to 0x3 that means overwrite selected and Image 1 will be used.
Also sorry, I made a mistake on that code. Here is the revised rsu_reconfig function:
when rsu_reconfig => u_valid_in <= '0'; onchip_flash_csr_write <= '0'; if(cnt = 0) then db_avalon_address <= "001"; db_avalon_writedata(0) <= '1'; -- set config_sel_overwrite db_avalon_writedata(1) <= boot_cfm_sel; -- set config_sel db_avalon_writedata(31 downto 2) <= (others => '0'); -- reserved db_avalon_write <= '1'; db_avalon_read <= '0'; cnt <= cnt + 1; elsif(cnt = 3) then -- write operation needs 3 cycle db_avalon_write <= '0'; db_avalon_read <= '0'; cnt <= cnt + 1; elsif(cnt = 4) then db_avalon_address <= "011"; -- busy reg db_avalon_read <= '1'; db_avalon_write <= '0'; cnt <= cnt + 1; elsif(cnt = 5) then -- read operation needs 1 cycle db_avalon_read <= '0'; db_avalon_write <= '0'; cnt <= cnt + 1; elsif(cnt = 6) then -- read data came in 2th cycle if(db_avalon_readdata /= x"00000000") then -- if ufm/cfm busy cnt <= 4; -- go back until busy flag is over else cnt <= cnt + 1; end if; elsif(cnt = 250000000) then -- high cnt value because of CPU should read the RSU checksum acknowledge db_avalon_address <= "000"; -- trigger reconfig db_avalon_writedata <= x"00000001"; -- hold nconfig min 250ns, 4 cycle at 12 MHz db_avalon_write <= '1'; db_avalon_read <= '0'; cnt <= cnt + 1; else -- wait for FPGA trig reconfig cnt <= cnt + 1; end if;
New ContributorHi jozephka99,
I'm very very interested to learn from your example but I can't download from link.
Can you help me? Maybe you can send your attachment by email?
I'm trying (desperately) to configure my 10m25sa manually by remote, but for me this is a new world, so If you can help me I would be very grateful.
Thank you in advance
Ilaria
