ARRIA V - Max AC Current

Hi ,

I'm using 5AGXMA ARRIA V FPGA

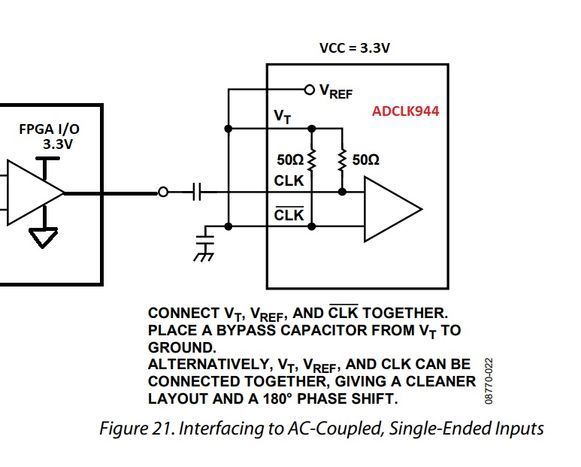

I want to connect 3.3LVCMOS single ended pin to ADCLK944.

Is there any worry that in transitions (1-> 0) this I/O pin will be sinking a bigger amount of current than it is allowed according to the FPGA datasheet (8mA) ?

(VREF voltage will equal to 2.15V while supplying to ADCLK944 3.3V

ADCLK944 datasheet is attached.)

2 Replies

  • AminT_Intel's avatar
    AminT_Intel
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hello,

    Please refer to Arria V Device Datasheet and refer to page 5 Table 1: Absolute Maximum Ratings for Arria V Devices. There you can see the range for DC output current for pin. It will be okay as long as you are following this specs.

    Thank you.

    • AminT_Intel's avatar
      AminT_Intel
      Icon for Regular Contributor rankRegular Contributor
      4 years ago

      We do not receive any response from you to the previous question/reply/answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
