How to add Stratix-IV device family on Quartus-ii-web-edition

Hi,

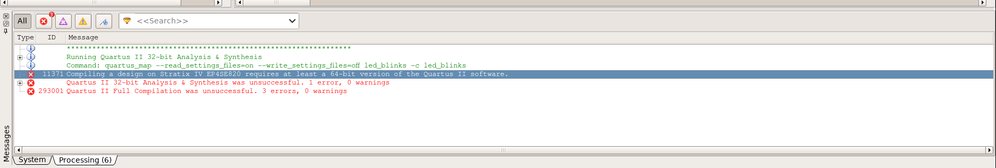

we are working on Startix-iv Intel Fpga Board. For this we needed installed this Software intel-quartus-ii-web-edition-design-software-version-13-0sp1-for-linux . While opening Quartus software we are unable to see Stratix IV on Device Family. According with document this version support Stratix-IV.

Please help me here to add Stratix-IV device family on Quartus-ii-web-edition.

13 Replies

Show More
  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

    Thank you.

    Best Regards,

    Richard Tan

    p/s: If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 4/5 survey.

  • deepak14's avatar
    deepak14
    Icon for New Contributor rankNew Contributor
    4 years ago

    Hi Richard Tan,

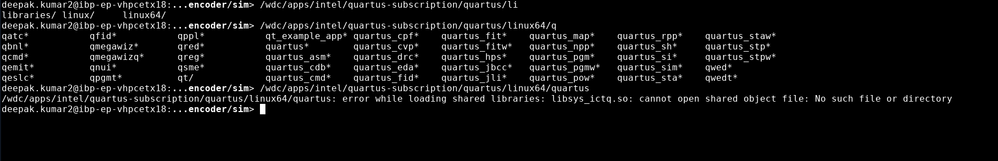

    I am getting this error when am trying Quartus 13 subscription version. In Intel website there is no 64 bit software version. there is linux64 folder in the installation which has Quartus executable but when we are trying to use it, we are getting library error.

    i am not able to find library with in the installation folder.

    Thanks,

    Deepak
